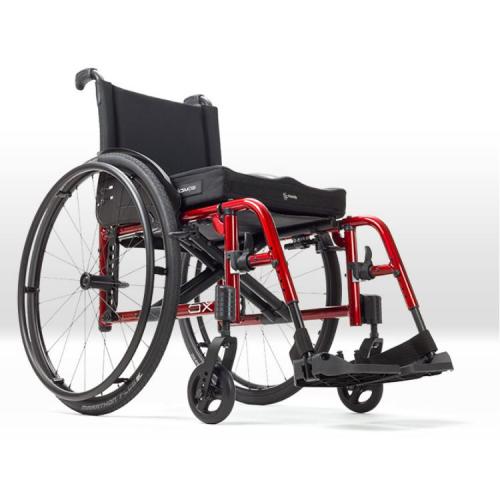

Ki Mobility Catalyst 5Vx

Manufacturer: Ki Mobility
Part Number:
Retail Price: $2,127.00
Price: $1,508.00 Ea



























$1,508.00    Add to Cart

DESCRIPTION

Catalyst 5Vx has been redesigned with a modern, minimalist approach.

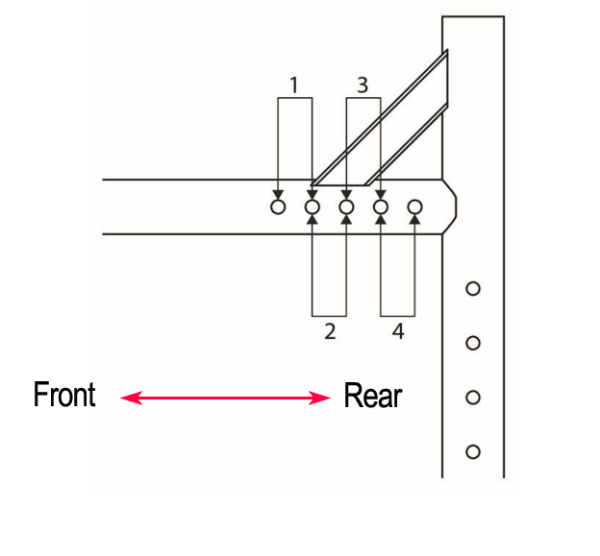

Center of gravity adjustment and ride performance go hand in hand. The redesigned axle plate and rear frame give you 2" (5.08 cm) of center of gravity adjustment in 1/2" (1.27 cm) increments and 5" (12.7 cm) of rear seat height adjustment over 7 positions.


Catalyst 5Vx is one of the lightest and strongest folding chairs on the market with its NEW 300 lb. standard weight capacity! A heavy duty option is also available.


Catalyst 5Vx offers the option of a swing away front end featuring our patented footrests or 70 or 80 fixed frames. The swing away hangers come in 4 bends (60, 70, 80 & 90) are light and easy to use.

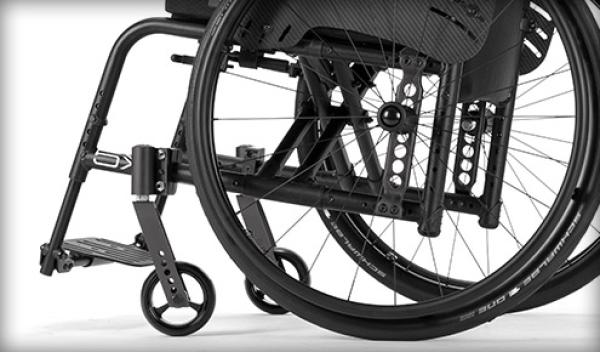

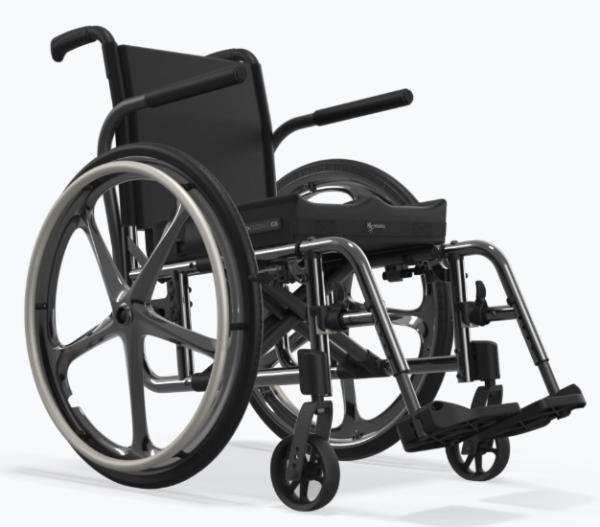

Pick your greatest shade then highlight your look with our new anodizing package, options and accessories.


The Catalyst Difference

Between-the-Rails Seat Frame is Ki Dual Interlocking Cross Braces are Ki
Between-the-rails seat frame

Most wheelchair seat rails sit above the frame unsupported.

A between-the-rails frame design uses the side frame to improve support for the cross brace. The steel reinforced, composite seat hooks mount on the front and back of each side of the frame. These hooks have subtle edges that hold and support the seat tubes and take much of the load off of the cross braces.
Dual Interlocking cross brace

Dual Interlocking Cross Braces have multiple advantages. The four interlocking crosstubes:

  • Minimize the racking common in folding designs, making the chair more rigid.
  • Limit racking and minimize the forces that would otherwise torque the cross brace, eventually causing failure.
  • Create a stronger overall design, while making the chair lighter.
Heat Treatment is Ki
Ki Mobility is the only major wheelchair manufacturer to Heat Treat their wheelchair frames after welding. The heat generated during welding weakens the tubing area adjacent to the weld. This area is referred to as the Heat Affected Zone. Ki Mobility's heat-treatment after welding significantly increases the strength and durability of the frame components.

Between-the-Rails Welded Lower Tabs
Hinge close up

Traditionally, cross braces have been engineered to form a parallelogram. This geometry was required to allow the cross brace to fold.

It also forces compromises. Cross braces unsupported by the frame can be racked and are vulnerable to breakage unless reinforced. Reinforcement usually means a much heavier chair.

The construction of other between-the-rails design (with welded lower tabs) adds weight, cost and restricts the ability to fold up the chair.

Standard Cross Brace
Standard Cross Brace
The Power X-Hinge eliminates the requirement that folding chairs must use a parallelogram cross brace configuration.
The Power X-Hinge is an extensible link that expands and contracts when the frame folds and unfolds. This construction provides you with a frame that is:
  • More Rigid
  • Stronger
  • Lighter
  • Easier to fold
  • Tighter when folded
Seat Upholstery
The Catalyst does not depend on the tautness of the seat upholstery to create a rigid frame. Traditionally, wheelchair seat upholstery gets tighter and tighter as the chair opens, until it finally snaps into place, as the linkage goes "over center". This indicates that:
  • The seat upholstery is not an integral part of the frame structure.
  • The upholstery must be taut for the frame to be rigid.
  • Rigidity will be lost in as little as a few months as the upholstery stretches.
