loadingLoading... Catalyst E and 4E

Catalyst E And 4e

Name: Catalyst E and 4E: Catalyst E Footplates - Composite Angle Adjustable
Manufacturer: Ki Mobility

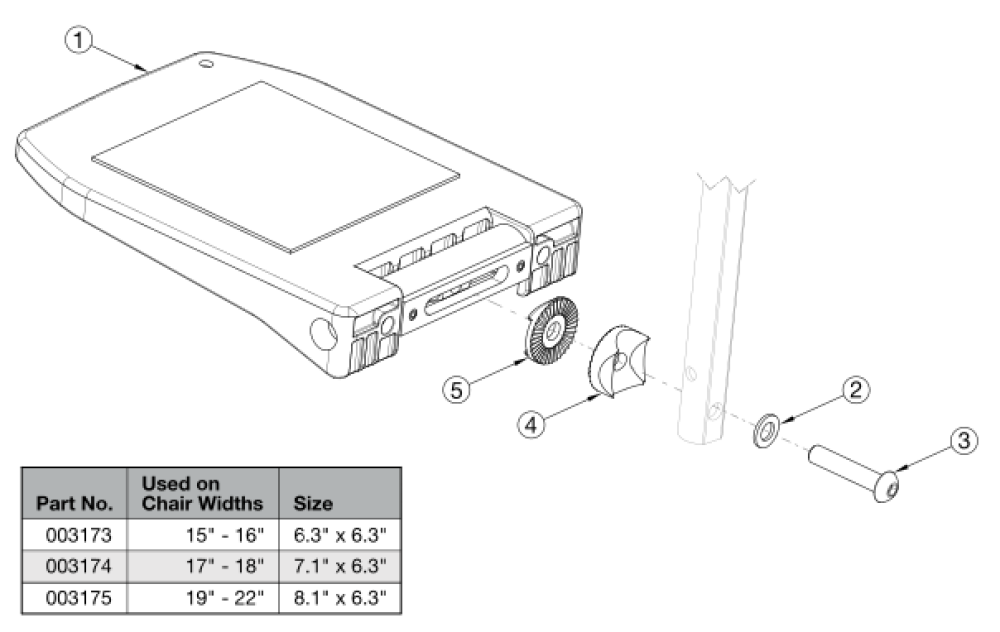

Catalyst E Footplates - Composite Angle Adjustable parts diagram
(Click on image to enlarge)

Sizes for footplates are based on seat width. Only compatible with extension tube hangers.
Pos. Part # Description Price UOM Buy
2 - 5 503726 Extension Tube Hardware Assembly for Composite Angle Adjustable Footplate- Used only for Extension Tube Mount Hangers for Pro ELR assembly please go to Pro ELR PM page.
$34.83
EA
1a 003173 Composite Angle Adjustable Footplate Small 15-16" Wide
$165.01
EA
1b 003174 Composite Angle Adjustable Footplate Medium 17-18" Wide
$167.66
EA
1c 003175 Composite Angle Adjustable Footplate Large 19-24" Wide
$170.30
EA
2 003188 Washer D8.4 x 1.6 MM
$0.09
EA
3 003189 Bolt M8 x 45MM, Galvanized Steel
$3.18
EA
4 003187 Locking Wheel w/Radius, R12.5 & R10, D30 x 11.3, Cast Steel, Black
$10.91
EA
5 003186 Locking Wheel w/Hexagon, D30 x 6.8/6, Cast Steel, Black
$11.11
EA
