Catalyst E And 4e

Name: Catalyst E and 4E: Catalyst E Hangers - 60 Degree Extension Tube
Manufacturer: Ki Mobility

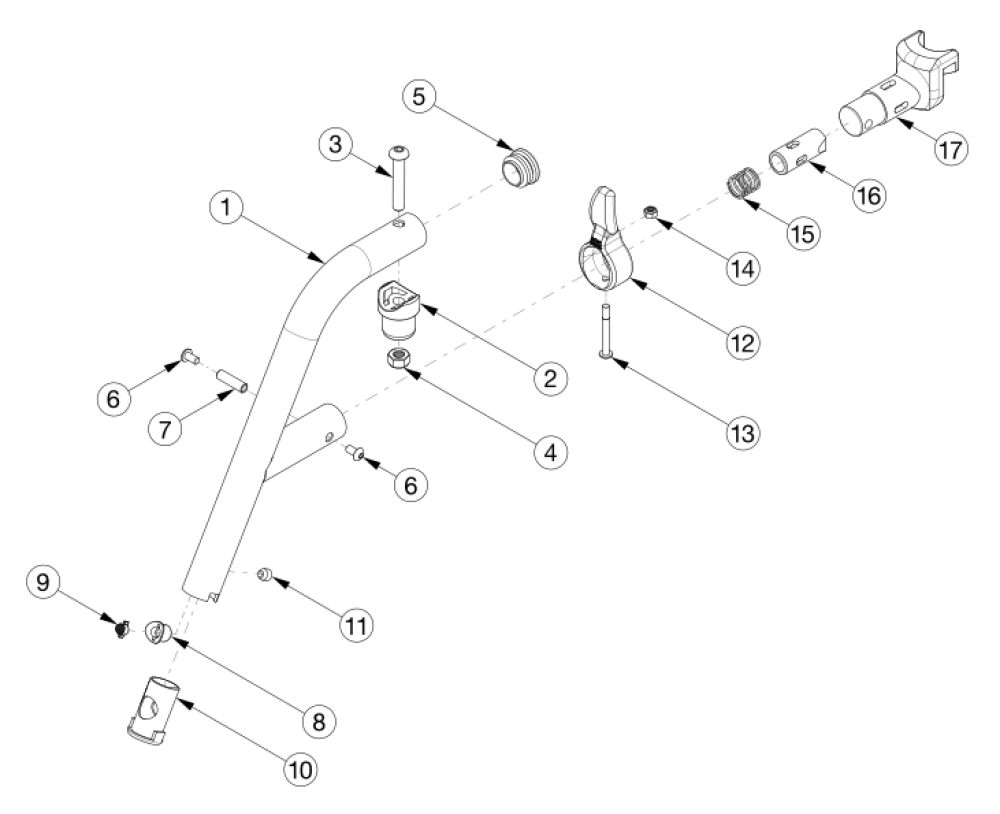

Catalyst E Hangers - 60 Degree Extension Tube parts diagram
(Click on image to enlarge)

Color CodesIf changing degree of hanger, new extension tubes may be needed
Pos. Part # Description Price UOM Buy
1 - 17 115921_ _ _ 60° Cleat Hanger Assembly, 4-Way-In-Line, Catalyst E N/A EA Please Call
1 - 17 115916_ _ _ 60° Cleat Hanger Assembly, 4-Way - Out Left, Catalyst E _ _ _ N/A EA Please Call
1 - 17 115917_ _ _ 60° Cleat Hanger Assembly, 4-Way - Out Right, Catalyst E _ _ _ N/A EA Please Call
12 - 17 003225 Assembled 4-Way In Line Hanger Release
$41.16
EA
12 - 17 003225INST Assembled 4-Way In Line Hanger Release with Instruction
$41.16
EA
12 - 17 003643 Assembled 4-Way Out Hanger Release, Left
$41.16
EA
12 - 17 003643INST Assembled 4-Way Out Hanger Release, Left with Instruction
$41.16
EA
12 - 17 003642 Assembled 4-Way Out Hanger Release, Right
$41.16
EA
12 - 17 003642INST Assembled 4-Way Out Hanger Release, Right with Instruction
$41.16
EA
8 - 11 115845 Cleat Hanger Adjustment Hardware
$12.74
EA
2 000032 Footrest Hanger Pivot Saddle
$5.88
EA
3 100673 M8 x 45 BTN SHCS BLKZC
$1.77
EA
4 100659 M8 Nylock Nut Blk Zn
$1.17
EA
5 100804 Tube End Plug 1"
$1.77
EA
6 100669 M5 x 10 BTN SHCS BLKZC w/Patch
$1.77
EA
7 000073 M5 x 24 Threaded Barrel
$4.23
EA
8 111949 Hanger Cleat Housing
$6.13
EA
9 111950 Hanger Cleat
$3.25
EA
10 111948 Cleat Hanger Sleeve
$1.22
EA
11 114457 M8 x 8 x 1.25 Cup Point Set Screw w/ Patch
$2.13
EA
12 003228 Hanger Latch, 4-Way, Lever
$3.53
EA
13 001374 M5 x 40 BHCS P/THD BLKZC
$2.40
EA
14 100657 M5 Nylock Nut Blk Zn
$0.60
EA
15 000119 Hanger Spring
$3.42
EA
16 003227 Hanger Latch, 4-Way, Pin
$22.35
EA
17 003226 Hanger Latch, 4-Way, Bracket
$25.30
EA
