loadingLoading... Ethos

Ethos

Name: Ethos: Ethos Camber Tube And Adapters
Manufacturer: Ki Mobility

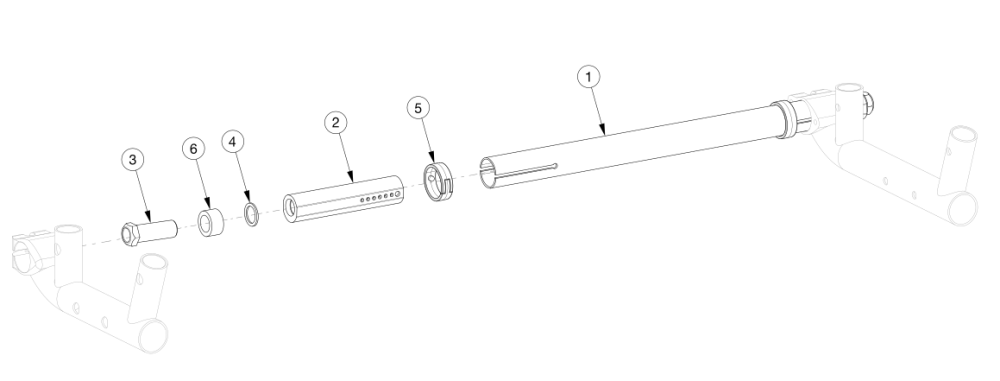

Ethos Camber Tube And Adapters parts diagram
(Click on image to enlarge)

Color Anodizing ReferenceCamber Tube based on seat width
Pos. Part # Description Price UOM Buy
1a 004165 12" Wide Camber Tube, Black Anodized
$15.54
EA
1b 004165_ _ _ 12" Wide Camber Tube, Color Anodized
$29.19
EA
1c 004166 13" Wide Camber Tube, Black Anodized
$16.29
EA
1d 004166_ _ _ 13" Wide Camber Tube, Color Anodized
$29.88
EA
1e 004167 14" Wide Camber Tube, Black Anodized
$16.92
EA
1f 004167_ _ _ 14" Wide Camber Tube, Color Anodized
$30.47
EA
1g 004168 15" Wide Camber Tube, Black Anodized
$17.45
EA
1h 004168_ _ _ 15" Wide Camber Tube, Color Anodized
$30.97
EA
1i 004169 16" Wide Camber Tube, Black Anodized
$18.18
EA
1j 004169_ _ _ 16" Wide Camber Tube, Color Anodized
$31.66
EA
1k 004170 17" Wide Camber Tube, Black Anodized
$18.72
EA
1l 004170_ _ _ 17" Wide Camber Tube, Color Anodized
$32.15
EA
1m 004171 18" Wide Camber Tube, Black Anodized
$19.55
EA
1n 004171_ _ _ 18" Wide Camber Tube, Color Anodized
$32.94
EA
1o 004172 19" Wide Camber Tube, Black Anodized
$20.09
EA
1p 004172_ _ _ 19" Wide Camber Tube, Color Anodized
$33.43
EA
1q 004173 20" Wide Camber Tube, Black Anodized
$20.82
EA
1r 004173_ _ _ 20" Wide Camber Tube, Color Anodized
$34.12
EA
2a 004174 Camber Plug 0 Degrees
$31.51
2a, 3, 4 004355 Camber Plug 0 Degrees Assembly
$43.24
2a, 3 - 5 108093 Camber Plug 0 Degrees Assembly with Camber Tube Clip- This kit is for one side
$44.61
EA
2b 004175 Camber Plug 2 Degrees
$51.80
2b, 3, 4 004356 Camber Plug 2 Degrees Assembly
$68.60
2b, 3 - 5 108094 Camber Plug 2 Degrees Assembly with Camber Tube Clip- This kit is for one side
$69.99
EA
2c 004176 Camber Plug 4 Degrees
$51.80
2c, 3, 4 004357 Camber Plug 4 Degrees Assembly
$68.60
2c, 3 - 5 108095 Camber Plug 4 Degrees Assembly with Camber Tube Clip- This kit is for one side
$69.99
EA
2d 004177 Camber Plug 6 Degrees
$56.45
2d, 3, 4 004358 Camber Plug 6 Degrees Assembly
$73.05
2d, 3 - 5 108096 Camber Plug 6 Degrees Assembly with Camber Tube Clip- This kit is for one side
$74.41
EA
2e 004178 Camber Plug 8 Degrees
$56.45
2e, 3, 4 004359 Camber Plug 8 Degrees Assembly
$73.05
2e, 3 - 5 108097 Camber Plug 8 Degrees Assembly with Camber Tube Clip- This kit is for one side
$74.41
EA
3 004179 Axle Sleeve 16mm x 1.0 X 2" Long
$17.86
4 004180 Washer .635 ID x .895 OD x .06 T Steel Blk Zc
$1.07
5 111808 Detent Clip For Camber Tube
$1.37
6 004182 Spacer Aluminum .635 Id X .945 Od X .500 T- Used as needed. Increases rear wheel spacing up to 2.25"
$2.75
