Catalyst E And 4e

Name: Catalyst E and 4E: Catalyst E Caster Housing - Heavy Duty
Manufacturer: Ki Mobility

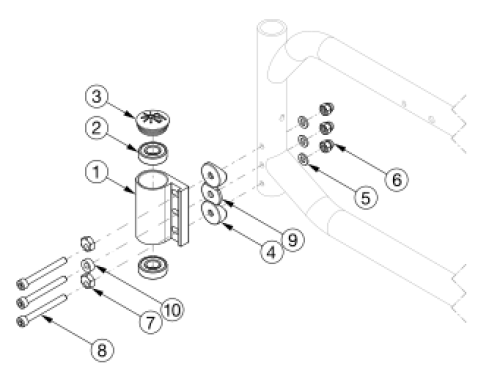

Catalyst E Caster Housing - Heavy Duty parts diagram
(Click on image to enlarge)

Please Note: The shown orientation of the caster housing above is in the "Forward" position.
Pos. Part # Description Price UOM Buy
1a, 2 - 10 115830 HD Caster Housing Assembly, Black, Left, No Transit
$83.26
EA
1b, 2 - 10 115831 HD Caster Housing Assembly, Black, Right, No Transit
$83.26
EA
1a, 1b, 2 - 10 115832 HD Caster Housing Assembly, Black, PAIR, No Transit
$166.52
EA
1a, 2 100526 Caster Housing Left, Black, CAT/Liberty
$42.16
EA
1b, 2 100527 Caster Housing Right, Black, CAT/Liberty
$42.16
EA
3 102005 Ki Caster Housing Cap
$1.31
EA
4 000056 Saddle 1 1/8"
$1.77
5 100746 M6 Flat Washer Blk Zn
$1.77
EA
6 100558 M6 NYL INS Domed Cap L/N ZC
$1.17
EA
7 100510 Eccentric Washer
$1.84
8 111814 SHCS, M6x1.0X55, CLS10.9, PT, BLZ, DIN912, Custom
$5.74
9 111813 1 1/8" Half Saddle
$6.24
EA
10 111544 Eccentric Washer, 0.50” Diameter
$5.74
EA
