Jazzy Air® MED - JG9
- 1. Articulating Beam / Wheels
- 2. Batteries
- 3. Off-board Charger Assy
- 4. Caster Arms / Motors
- 5. Decal Package / Owners Package
- 6. Drive Wheel Assy
- 7. Electronics Assy
- 8. Seat Assy's
- 9. Foot Platform & Seat Interface Assy's
- 10. Joystick
- 11. Main Frame / Actuator Assy's
- 12. Shroud Assy's
- 13. Accessories
Jazzy Air® Med - Jg9

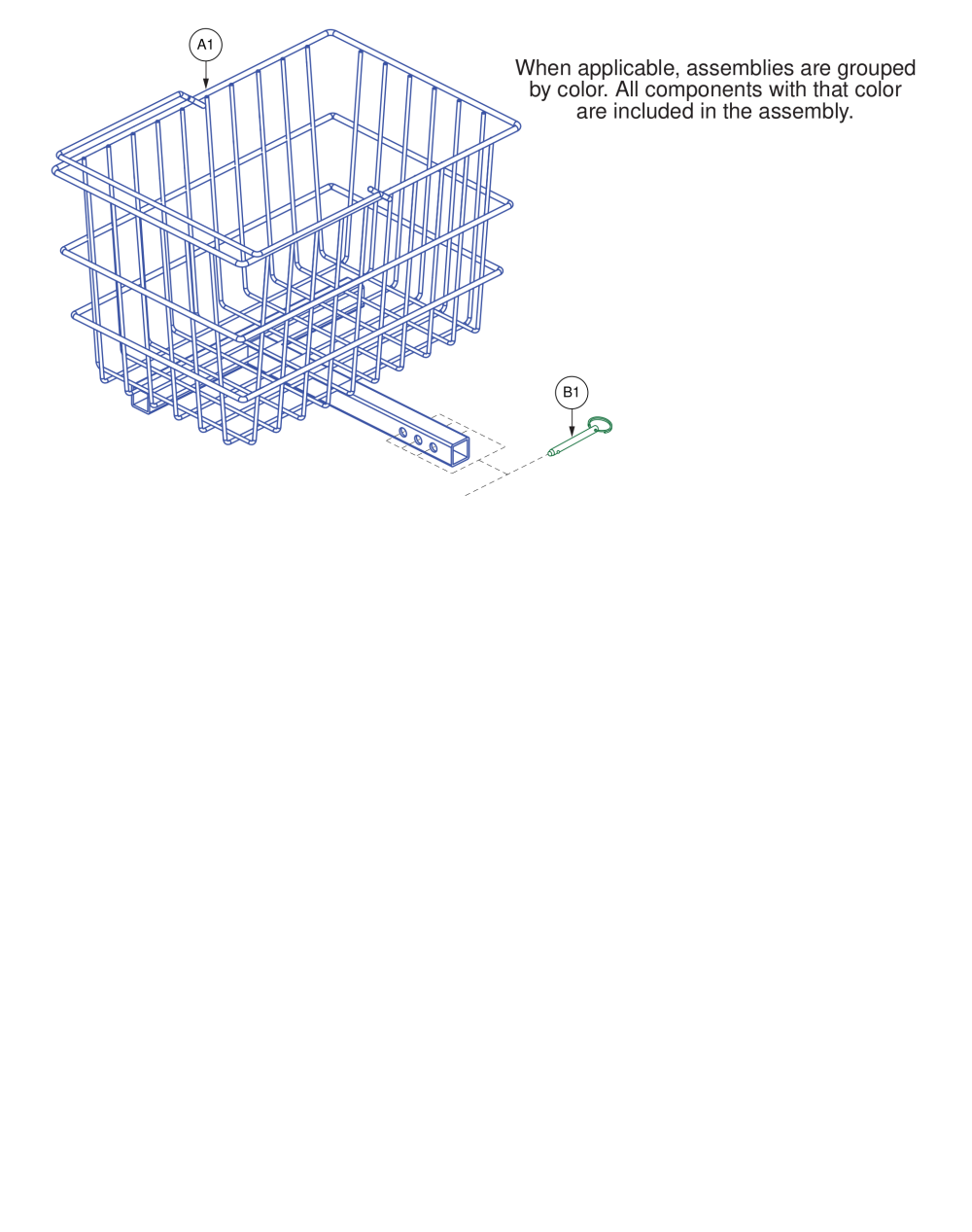

Name: Jazzy Air® MED - JG9: Rear Basket Assy.
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 | ACC1610772 | REAR BASKET ASSY, W/ACCESSORY TUBE, JAZZY AIR |
$241.50
|
EA |
|
|
| B1 | PINCOTD1006 | PIN, COTTERLESS DETENT W/RING, .375" DIA X 2.00" GRIP LENGTH, B-1005-169 |
$6.40
|
EA |
|
