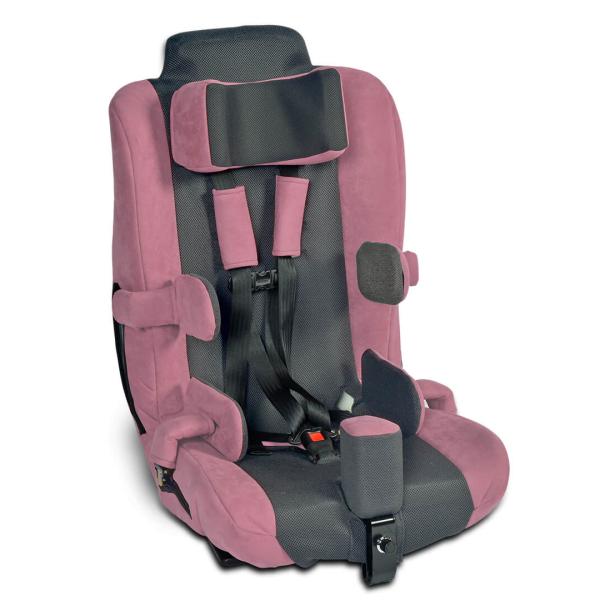

Spirit Plus Adjustable Positioning System (APS) Car Seat
Part Number: 2400
Price: $3,999.00 Ea
DESCRIPTION
The new Spirit Plus 2400 Adjustable Positioning System (APS) Special Needs Car Seat features swing-away trunk and hip supports normally found only in complex wheelchair seating systems. The Spirit APS is designed for users between 25-130lbs., and up to 66 inches in height.
The Spirit Plus Pediatric Car Seat comes standard with features such as soft-padded head support, low profile sides to make transfers of passengers easier, plush machine-washable upholstery, 5-point harness for safety and a recline bar to provide recline (tilt). Also, installation is made easier as the vehicle shoulder belt can be used as the tether in most installations.
For users requiring additional positioning, the Spirit is the only car seat that offers swing-away trunk and hip supports that are individually adjustable and can be fitted exactly to the user's specifications. The support assemblies, along with the pads, can be ordered in various sizes to accommodate varying trunk and hip widths. The swing-away latch mechanisms enable a full 180 degree range so that they swing completely out of the way during transfers of the individual in and out of the seat.
Modern, Multi Color Design
Featuring a modern design combination of faux suede and mesh, the Spirit is offered in 5 different colors options that range from bright and vibrant like Convertible Pink to colors created to match the interiors of cars like Speedway Gray.
Positioning Support
The Spirit offers the highest levels of positioning support available in the special needs car seat market. A wide range of positioning options that include the head, trunk and hip are available to ensure the most optimal positioning is achieved.
Medium Kit Includes:
- Abductor (CSS-R2415) or (CSS-R2419 w/ Extender)
- 10" - 14" Width Hip Bracket (CSS-R2473H)
- 4" x 8" Hip Pad (CSS-R2481M)
- 6" - 12" Width Trunk Bracket (CSS-R2474T)
- 3" x 5" Trunk Pad (CSS-R2482M)
Large Kit Includes:
- Abductor CSS-R2415 (CSS-R2419 w/ Extender)
- 13" - 16" Width Hip Bracket (CSS-R2471H)
- 4" x 12" Hip Pad (CSS-R2481L)
- 10" - 14" Width Trunk Bracket (CSS-R2473T)
- 4" x 6" Trunk Pad (CSS-R2482L)
SPECIFICATION
Weight Capacity: | 25 - 130lbs. |
Max Height: | 66" |
Harness Height: | 11", 13.5", 16", 18.5", 20.5", 23.5" (min. 10") |
Shoulder Width: | 18" |
Back Height: | 28" |
Seat Depth: | 12" (16" w/ Extender) |
Inside Seat Width at Front: | 17" (19" w/ Extender) |
Inside Seat Width at Rear: | 15" |
Overall Width: | 21.5" |
Seat-to-Back Angle: | 98° |
Weight: | 29lbs. (33lbs. w/ Extender) |
