Name: CR45: Adult Angle Adjustable Locking Extendable Flip Up Armrest
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

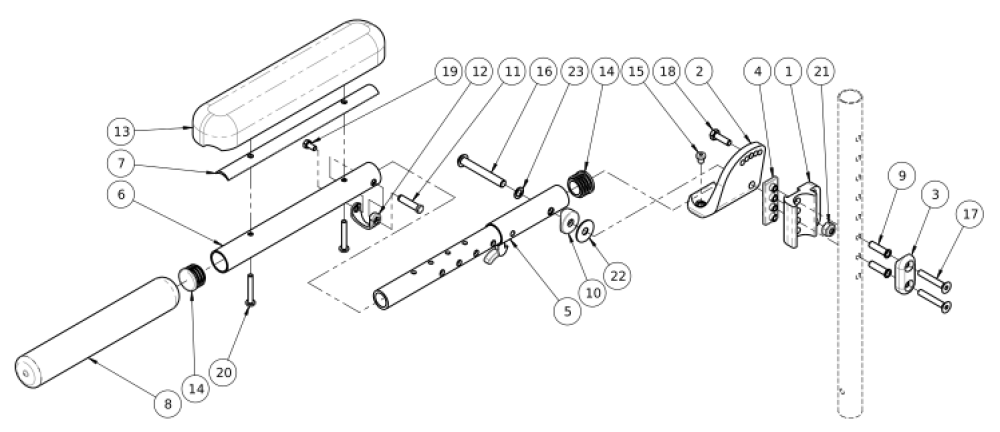

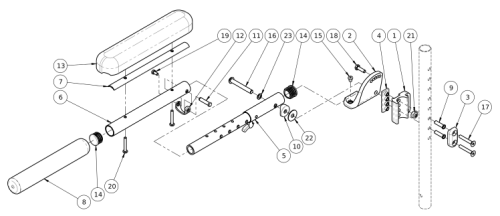

Part Picture
(Click on image to enlarge)
Adult Angle Adjustable Locking Flip Up Armrest is used on all Catalyst, Rogue XP, Liberty FT and Focus chairs.
Armrest effective 12/22/16 starting with serial numbers C5042365, C5HD003085, FCR0018117, FCHD002227, RGXP005413, and RGX0020821. Changing from foam grip to arm pad new #6 needed
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 5, 6a, 7a, 9 - 12, 13b, 14 - 23 | 504315 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Pad w/ Mounting Hardware, PAIR |
$547.37
|
EA |
|
|
| 1a, 2a, 3 - 5, 6a, 7a, 9 - 12, 13b, 14 - 23 | 504313 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Pad w/ Mounting Hardware, Right |
$273.68
|
EA |
|
|
| 1b, 2b, 3 - 5, 6a, 7a, 9 - 12, 13b, 14 - 23 | 504314 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Pad w/ Mounting Hardware, Left |
$273.68
|
EA |
|
|
| 1 - 5, 6b, 7b, 9 - 12, 13a, 14 - 23 | 504318 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Pad w/ Mounting Hardware, PAIR |
$552.08
|
EA |
|
|
| 1a, 2a, 3 - 5, 6b, 7b, 9 - 12, 13a, 14 - 23 | 504316 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Pad w/ Mounting Hardware, Right |
$276.04
|
EA |
|
|
| 1b, 2b, 3 - 5, 6b, 7b, 9 - 12, 13a, 14 - 23 | 504317 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Pad w/ Mounting Hardware, Left |
$276.04
|
EA |
|
|
| 1 - 5, 6a, 8a, 9 - 12, 14 - 19, 21 - 23 | 504321 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Foam Grip w/ Mounting Hardware, PAIR |
$489.75
|
EA |
|
|
| 1a, 2a, 3 - 5, 6a, 8a, 9 - 12, 14 - 19, 21 - 23 | 504319 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Foam Grip w/ Mounting Hardware, Right |
$244.88
|
EA |
|
|
| 1b, 2b, 3 - 5, 6a, 8a, 9 - 12, 14 - 19, 21 - 23 | 504320 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Foam Grip w/ Mounting Hardware, Left |
$244.88
|
EA |
|
|
| 1 - 5, 6b, 8b, 9 - 12, 14 - 19, 21 - 23 | 504324 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Foam Grip w/ Mounting Hardware, PAIR |
$494.45
|
EA |
|
|
| 1a, 2a, 3 - 5, 6b, 8b, 9 - 12, 14 - 19, 21 - 23 | 504322 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Foam Grip w/ Mounting Hardware, Right |
$247.23
|
EA |
|
|
| 1b, 2b, 3 - 5, 6b, 8b, 9 - 12, 14 - 19, 21 - 23 | 504323 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Foam Grip w/ Mounting Hardware, Left |
$247.23
|
EA |
|
|
| 5, 6a, 7a, 10 - 12, 13b, 14, 16, 19, 20, 22, 23 | 506104 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Pad, PAIR |
$321.49
|
EA |
|
|
| 5, 6a, 7a, 10 - 12, 13b, 14, 16, 19, 20, 22, 23 | 506102 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Pad, Right |
$160.75
|
EA |
|
|
| 5, 6a, 7a, 10 - 12, 13b, 14, 16, 19, 20, 22, 23 | 506103 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Pad, Left |
$160.75
|
EA |
|
|
| 5, 6b, 7b, 10 - 12, 13a, 14, 16, 19, 20, 22, 23 | 506107 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Pad, PAIR |
$326.19
|
EA |
|
|
| 5, 6b, 7b, 10 - 12, 13a, 14, 16, 19, 20, 22, 23 | 506105 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Pad, Right |
$163.11
|
EA |
|
|
| 5, 6b, 7b, 10 - 12, 13a, 14, 16, 19, 20, 22, 23 | 506106 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Pad, Left |
$163.11
|
EA |
|
|
| 5, 6a, 8a, 10 - 12, 14, 16, 19, 22, 23 | 506110 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Foam Grip, PAIR |
$296.80
|
EA |
|
|
| 5, 6a, 8a, 10 - 12, 14, 16, 19, 22, 23 | 506108 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Foam Grip, Right |
$148.41
|
EA |
|
|
| 5, 6a, 8a, 10 - 12, 14, 16, 19, 22, 23 | 506109 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Desk Foam Grip, Left |
$148.41
|
EA |
|
|
| 5, 6b, 8b, 10 - 12, 14, 16, 19, 22, 23 | 506113 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Foam Grip, PAIR |
$301.50
|
EA |
|
|
| 5, 6b, 8b, 10 - 12, 14, 16, 19, 22, 23 | 506111 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Foam Grip, Right |
$150.75
|
EA |
|
|
| 5, 6b, 8b, 10 - 12, 14, 16, 19, 22, 23 | 506112 | Adult Angle Adjustable Locking Flip Up Armrest Assembly Full Foam Grip, Left |
$150.75
|
EA |
|
|
| 1 - 4, 9, 15, 17, 18, 21 | 504312 | Angle Adjustable Locking Flip Up Arm Mounting Hardware Assembly, PAIR |
$121.55
|
EA |
|
|
| 1a, 2a, 3, 4, 9, 15, 17, 18, 21 | 504310 | Angle Adjustable Locking Flip Up Arm Mounting Hardware Assembly, Right |
$60.76
|
EA |
|
|
| 1b, 2b, 3, 4, 9, 15, 17, 18, 21 | 504311 | Angle Adjustable Locking Flip Up Arm Mounting Hardware Assembly, Left |
$60.76
|
EA |
|
|
| 1a | 002836 | Locking Flip Up Arm Mount Bracket Right |
$10.92
|
EA |
|
|
| 1b | 002837 | Locking Flip Up Arm Mount Bracket Left |
$10.92
|
EA |
|
|
| 2a | 002838 | Locking Flip Up Arm Index Bracket Right |
$17.65
|
EA |
|
|
| 2b | 002839 | Locking Flip Up Arm Index Bracket Left |
$17.65
|
EA |
|
|
| 3 | 002840 | Locking Flip Up Arm Dual Saddle 1"OD x 1"SP |
$6.12
|
EA |
|
|
| 4 | 002841 | Locking Flip Up Arm Nut Plate |
$14.12
|
EA |
|
|
| 5 | 003162 | Locking Flip Up Arm Steel Tube Assembly- Used on all Catalyst, Rogue XP, Liberty FT and Focus chairs | Used on all Catalyst, Rogue XP, Liberty FT and Focus chairs |
$109.78
|
EA |
|
| 6a | 002844 | Locking Flip Up Arm Extension Tube Desk |
$10.59
|
EA |
|
|
| 6b | 002845 | Locking Flip Up Arm Extension Tube Full |
$12.94
|
EA |
|
|
| 7a | 002849 | Locking Flip Up Arm Pad Adapter Desk |
$5.88
|
EA |
|
|
| 7b | 002850 | Locking Flip Up Arm Pad Adapter Full |
$5.88
|
EA |
|
|
| 6a, 8a, 14 | 504337 | Locking Flip Up Arm Extension and Foam Grip Kit, Desk |
$25.75
|
EA |
|
|
| 6b, 8b, 14 | 504338 | Locking Flip Up Arm Extension and Foam Grip Kit, Full |
$28.58
|
EA |
|
|
| 9 | 002914 | Sleeve .266 OD x .236 ID x .97 LG- Not used on Rogue XP models. Only used on Catalyst with Reclining Back. Always used on Liberty FT and Focus models. | Not used on Rogue XP models. Only used on Catalyst with Reclining Back. Always used on Liberty FT and Focus models. |
$4.23
|
EA |
|
| 10 | 001271 | 1" Saddle, .323 Hole |
$1.81
|
EA |
|
|
| 11 | 000987 | Threaded Fastener |
$4.23
|
EA |
|
|
| 12 | 000988 | Fastener Retainer |
$4.41
|
EA |
|
|
| 13a | 100500 | Arm Pad Full |
$26.45
|
EA |
|
|
| 13b | 100501 | Arm Pad Desk |
$26.45
|
EA |
|
|
| 14 | 100804 | Tube End Plug 1" |
$1.77
|
EA |
|
|
| 15 | 102870 | Bumper, .375 HD x .25 Stem |
$1.17
|
EA |
|
|
| 16 | 102865 | M8 X 60, BHCS, 28mm THD, BZ |
$6.47
|
EA |
|
|
| 17 | 101819 | M6 x 40 FHCS Blk Zn |
$1.17
|
EA |
|
|
| 18 | 101823 | M6 x 20 HHCS Blk Zn |
$1.17
|
EA |
|
|
| 19 | 200427 | M5 x 10 CLS8.8 HHCS ZC w/Patch DIN933 |
$0.60
|
EA |
|
|
| 20 | 102867 | M5 X 35 PAN HD PHP, BLK ZN- Used with arm pads | Used with arm pads |
$1.17
|
|
|
| 21 | 100659 | M8 Nylock Nut Blk Zn |
$1.17
|
EA |
|
|
| 22 | 102866 | Washer, Nylon, 1"OD x.318ID x.04 |
$1.17
|
EA |
|
|
| 23 | 101861 | Nylon Washer 5/16 x 1/2 x .03 |
$0.60
|
EA |
|
