loadingLoading... CR45

Cr45

Name: CR45: Cr45 Height Adjustable T-arm Low
Manufacturer: Ki Mobility

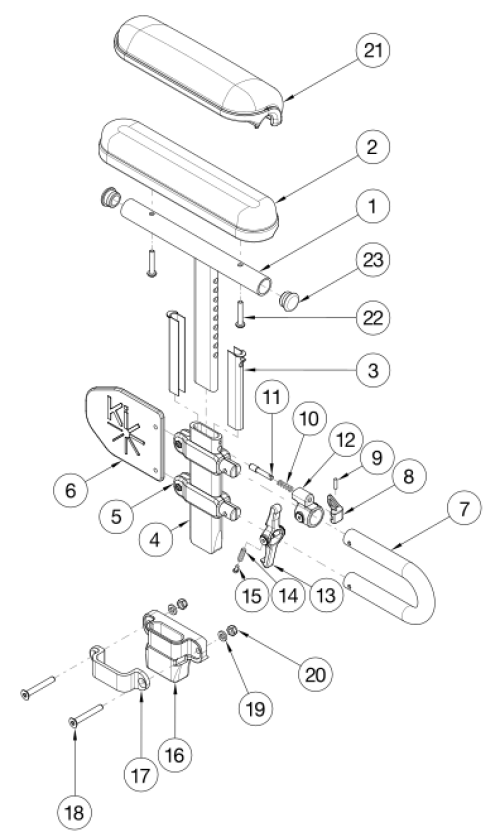

Cr45 Height Adjustable T-arm Low parts diagram
(Click on image to enlarge)

If retrofitting, Receivers are needed.
Pos. Part # Description Price UOM Buy
1a, 2b, 3 - 18, 19a, 20 - 22 116465 Height Adjustable T-Arm Assembly Low, Desk w/ Std Pad and Receiver Pair
$492.88
EA
1a, 2b, 3 - 18, 19a, 20 - 22 116466 Height Adjustable T-Arm Assembly Low, Desk w/ Std Pad and Receiver Right
$246.44
EA
1a, 2b, 3 - 18, 19a, 20 - 22 116467 Height Adjustable T-Arm Assembly Low, Desk w/ Std Pad and Receiver Left
$246.44
EA
1a, 2b, 3 - 15, 19a, 20 503167 Height Adjustable T-Arm Assembly Low, Desk w/ Std Pad Right
$180.01
EA
1a, 2b, 3 - 15, 19a, 20 503168 Height Adjustable T-Arm Assembly Low, Desk w/ Std Pad Left
$180.01
EA
1b, 2a, 3 - 18, 19a, 20 - 22 116468 Height Adjustable T-Arm Assembly Low, Full w/ Std Pad and Receiver Pair
$492.88
EA
1b, 2a, 3 - 18, 19a, 20 - 22 116469 Height Adjustable T-Arm Assembly Low, Full w/ Std Pad and Receiver Right
$246.44
EA
1b, 2a, 3 - 18, 19a, 20 - 22 116470 Height Adjustable T-Arm Assembly Low, Full w/ Std Pad and Receiver Left
$246.44
EA
1b, 2a, 3 - 15, 19a, 20 503169 Height Adjustable T-Arm Assembly Low, Full w/ Std Pad Right
$180.01
EA
1b, 2a, 3 - 15, 19a, 20 503170 Height Adjustable T-Arm Assembly Low, Full w/ Std Pad Left
$180.01
EA
1b, 3 - 18, 19b, 20 - 22, 23a 116471 Height Adjustable T-Arm Assembly Low, Desk w/ Waterfall Pad and Receiver Pair
$513.38
EA
1a, 3 - 18, 19b, 20 - 22, 23b 116472 Height Adjustable T-Arm Assembly Low, Desk w/ Waterfall Pad and Receiver Right
$256.69
EA
1a, 3 - 18, 19b, 20 - 22, 23b 116473 Height Adjustable T-Arm Assembly Low, Desk w/ Waterfall Pad and Receiver Left
$256.69
EA
1a, 3 - 15, 19b, 20, 23b 503183 Height Adjustable T-Arm Assembly Low, Desk w/ Waterfall Pad Right
$190.25
EA
1a, 3 - 15, 19b, 20, 23b 503184 Height Adjustable T-Arm Assembly Low, Desk w/ Waterfall Pad Left
$190.25
EA
1b, 3 - 18, 19b, 20 - 22, 23a 116474 Height Adjustable T-Arm Assembly Low, Full w/ Waterfall Pad and Receiver Pair
$513.38
EA
1b, 3 - 18, 19b, 20 - 22, 23a 116475 Height Adjustable T-Arm Assembly Low, Full w/ Waterfall Pad and Receiver Right
$256.69
EA
1b, 3 - 18, 19b, 20 - 22, 23a 116476 Height Adjustable T-Arm Assembly Low, Full w/ Waterfall Pad and Receiver Left
$256.69
EA
1b, 3 - 15, 19b, 20, 23a 503185 Height Adjustable T-Arm Assembly Low, Full w/ Waterfall Pad Right
$190.25
EA
1b, 3 - 15, 19b, 20, 23a 503186 Height Adjustable T-Arm Assembly Low, Full w/ Waterfall Pad Left
$190.25
EA
1a, 3 - 15, 20 002681 Arm T Height Adjustable Low, Desk Right Assembly
$150.00
EA
1a, 3 - 15, 20 002682 Arm T Height Adjustable Low, Desk Left Assembly
$150.00
EA
1b, 3 - 15, 20 002683 Arm T Height Adjustable Low, Full Right Assembly
$150.00
EA
1b, 3 - 15, 20 114489 Height Adjustable T-Arm, Full, Low- Replaced 002683 / 002684
$150.00
EA
16 - 20 116477 Height Adjustable T-Arm Receiver Assembly 1" CAT
$62.30
EA
1a, 20 002648 Post Weldment, T-Arm, Low, Desk
$75.08
EA
1b, 20 002649 Post Weldment, T-Arm, Low, Full
$77.62
EA
2a 100500 Arm Pad Full
$26.45
EA
2b 100501 Arm Pad Desk
$26.45
EA
3 000090 Height Adjustable T Armrest Shim
$2.86
4 002105 Tube, Outer, T-Arm, Low
$33.15
EA
5 000092 Height Adjustable T Armrest Clamp N/A Please Call
6 002107 Sideguard, T-Arm, Low N/A EA Please Call
7 002104 Transfer Tube, T-Arm, Low
$18.82
EA
8 000098 Height Adjustable Armrest Lever N/A EA Please Call
9 200257 Dowel Pin 1/8 x 1/2
$2.94
EA
10 000134 Height Adjustable Armrest Lever Spring
$1.25
EA
11 000099 Height Adjustable Armrest Lever Pin
$21.41
EA
12 000096 Height Adjustable T Armrest Pin Lock Housing
$16.47
EA
8 - 12 500541 Arm Height Adjustable T Upper Lever Assembly
$45.41
EA
13 002106 Lever, T-Arm, Low
$3.88
EA
14 000135 Height Adjustable T Armrest Release Lever Spring
$1.21
EA
15 000152 Height Adjustable T Armrest Release Spring Button
$1.21
EA
16 000087 Height Adjustable T-Arm Receiver 1"
$17.07
EA
17 000088 Height Adjustable T Armrest Bracket
$30.69
EA
18 101592 M6 x 45 CLS10.9 DIN7991 FHCS BLKZC
$2.94
EA
19 100746 M6 Flat Washer Blk Zn
$1.77
EA
20 100658 M6 Nylock Nut Blk Zn
$1.17
EA
21a 102452 Waterfall Arm Pad Full
$36.71
EA
21b 102521 Waterfall Arm Pad Desk
$36.71
EA
22a 100696 M5 x 30mm PPH Capscrew- Used with Standard Arm Pads
$1.77
EA
22b 100654 M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with Waterfall Arm Pads
$1.77
23 100803 Tube End Plug 7/8"
$1.77
EA
