Cr45
Name: CR45: Cr45 Foot Tilt
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

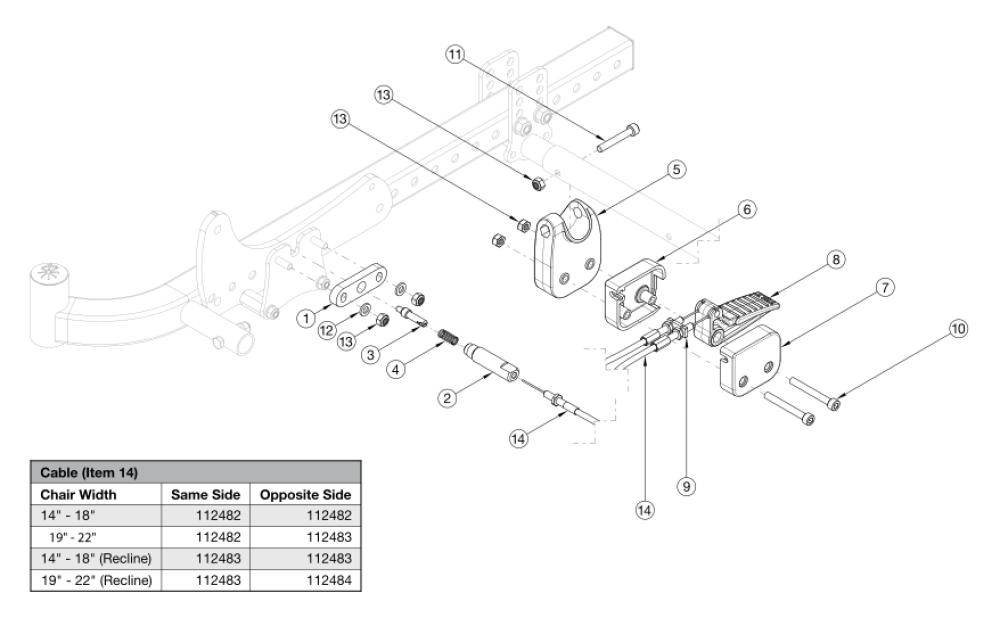

Part Picture
(Click on image to enlarge)
Cables are determined based on width of chair. Please see chart within diagram to determine which cables are used.
If retrofitting from Hand Tilt, the complete Foot Tilt Kit is recommended.
Cables are determined based on the width of the chair and which side the tilt mechanism is mounted to. If right side mounted, same side = right; opposite side = left.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 13, 14a | 116292 | Foot Tilt Kit, 14-18 Wide |
$374.66
|
EA |
|
|
| 1 - 13, 14a, 14b | 116293 | Foot Tilt Kit, 19-22 Wide |
$376.92
|
EA |
|
|
| 1 - 13, 14b | 116294 | Foot Tilt Kit, Recline, 14-18 Wide |
$379.17
|
EA |
|
|
| 1 - 13, 14b, 14c | 116295 | Foot Tilt Kit, Recline, 19-22 Wide |
$381.82
|
EA |
|
|
| 1 | 112477 | Tilt Lock Plunger Adapter |
$32.93
|
|
||
| 2 | 112478 | Plunger Housing |
$12.08
|
|
||
| 3 | 112479 | Plunger Pin |
$30.51
|
|
||
| 4 | 112480 | Spring, Comp, .312ODx.81LGx.032W |
$1.59
|
|
||
| 5 | 112481 | Foot Tilt Pedal Mount |
$18.49
|
EA |
|
|
| 9 | 110226 | Nut Plate, Cable, M6, .50SP |
$13.29
|
|
||
| 10 | 102473 | M6 X 50 CLS12.9 SHCS BLK ZC |
$4.79
|
EA |
|
|
| 11 | 101847 | M6 x 40 SHCS Blk Zn |
$1.09
|
EA |
|
|
| 12 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 13 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
|
| 14a | 112482 | Foot Tilt Cable Short, CR45 |
$64.57
|
|
||
| 14b | 112483 | Foot Tilt Cable Medium, CR45 |
$66.83
|
|
||
| 14c | 112484 | Foot Tilt Cable Long, CR45 |
$69.47
|
EA |
|
