loadingLoading... Ethos

Ethos

Name: Ethos: Ethos Armrests - Height Adjustable Tall T-arm
Manufacturer: Ki Mobility

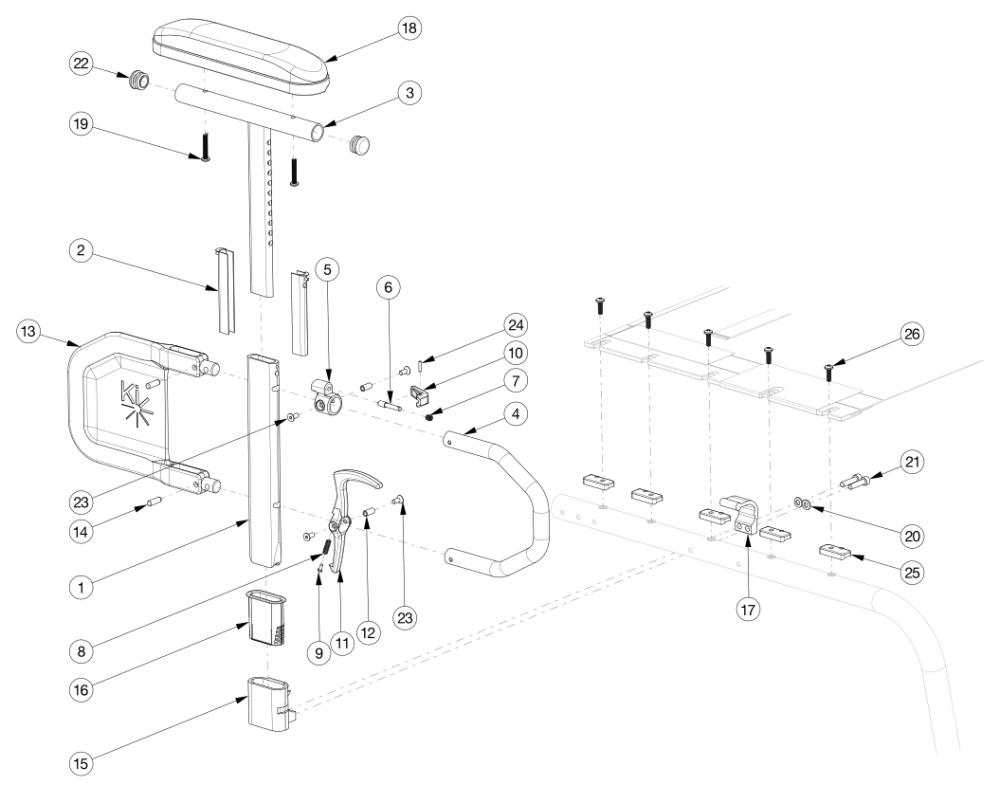

Ethos Armrests - Height Adjustable Tall T-arm parts diagram
(Click on image to enlarge)

If retrofitting to Height Adjustable Tall T-Arms and wheel locks are present, extended wheel lock clamp assemblies are required. If retrofitting, Receivers are needed.
Pos. Part # Description Price UOM Buy
1, 2, 3a, 4 - 17, 18b, 19a, 20 - 26 116170 Height Adj Tall T-Arm Assm w/Short Side Shield, Std Pad Desk with Receiver and Seat Rail Saddles
$352.08
EA
1, 2, 3a, 4 - 17, 18b, 19a, 20 - 26 116171 Height Adj Tall T-Arm Assm w/Short Side Shield, Std Pad Desk with Receiver and Seat Rail Saddles (Pair)
$704.15
EA
1, 2, 3b, 4 - 17, 18a, 19a, 20 - 26 116172 Height Adj Tall T-Arm Assm w/Short Side Shield, Std Pad Full with Receiver and Seat Rail Saddles
$352.08
EA
1, 2, 3b, 4 - 17, 18a, 19a, 20 - 26 116173 Height Adj Tall T-Arm Assm w/Short Side Shield, Std Pad Full with Receiver and Seat Rail Saddles (Pair)
$704.15
EA
1, 2, 3a, 4 - 17, 18d, 19b, 20 - 26 116174 Height Adj Tall T-Arm Assm w/Short Side Shield, Waterfall Pad Desk with Receiver and Seat Rail Saddles
$362.33
EA
1, 2, 3a, 4 - 17, 18d, 19b, 20 - 26 116175 Height Adj Tall T-Arm Assm w/Short Side Shield, Waterfall Pad Desk with Receiver and Seat Rail Saddles (Pair)
$724.65
EA
1, 2, 3b, 4 - 17, 18c, 19b, 20 - 26 116176 Height Adj Tall T-Arm Assm w/Short Side Shield, Waterfall Pad Full with Receiver and Seat Rail Saddles
$362.33
EA
1, 2, 3b, 4 - 17, 18c, 19b, 20 - 26 116177 Height Adj Tall T-Arm Assm w/Short Side Shield, Waterfall Pad Full with Receiver and Seat Rail Saddles (Pair)
$724.65
EA
1, 2, 3a, 4 - 14, 18b, 19a, 22 - 24 116162 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Desk
$273.47
EA
1, 2, 3a, 4 - 14, 18b, 19a, 22 - 24 116163 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Desk, Pair
$546.92
EA
1, 2, 3b, 4 - 14, 18a, 19a, 22 - 24 116164 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Full
$273.47
EA
1, 2, 3b, 4 - 14, 18a, 19a, 22 - 24 116165 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Full, Pair
$546.92
EA
1, 2, 3a, 4 - 14, 18d, 19b, 22 - 24 116166 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Desk
$283.71
EA
1, 2, 3a, 4 - 14, 18d, 19b, 22 - 24 116167 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Desk, Pair
$567.44
EA
1, 2, 3b, 4 - 14, 18c, 19b, 22 - 24 116168 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Full
$283.71
EA
1, 2, 3b, 4 - 14, 18c, 19b, 22 - 24 116169 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Full, Pair
$567.44
EA
1, 2, 4 - 14, 23 - 24 114150 Height Adjustable T-Arm Short Lower Assembly, Tall- Does not include t-arm upper, arm pad or arm pad screws
$159.47
EA
1, 2, 3a, 4 - 14, 22 - 24 114432 Height Adjustable T-Arm Short Side Shield, Desk, Tall- Does not include arm pad or arm pad screws
$243.46
EA
1, 2, 3b, 4 - 14, 22 - 24 114433 Height Adjustable T-Arm Short Side Shield, Full, Tall- Does not include arm pad or arm pad screws
$243.46
EA
5 - 7, 10, 23, 24 116378 Height Adjustable Tall T-Arm Upper Latch Assembly
$45.41
EA
8, 9, 11, 23 116375 Height Adjustable Tall T-Arm Release Lever Assembly
$9.50
EA
15 - 17, 20, 21 108234 Height Adjustable T-Arm Receiver Assembly, Ethos
$49.11
EA
15 - 17, 20, 21 109750 Height Adjustable T-Arm Receiver Assembly, PAIR, Ethos
$98.23
EA
12 - 14 506082 Height Adjustable T-Arm Short Shield Assembly
$18.40
EA
1 113137 Height Adjustable T-Arm Post, Tall
$28.10
EA
2 113138 Height Adjustable T-Arm Transfer Tube, Tall
$36.74
EA
3a, 22 116379 Height Adjustable Tall T Armrest Upper Desk w/ Tube End Plug
$85.82
EA
3b, 22 116380 Height Adjustable Tall T Armrest Upper Full w/ Tube End Plug
$85.82
EA
4 000095 Height Adjustable T Armrest Transfer Tube
$31.41
EA
8 000135 Height Adjustable T Armrest Release Lever Spring
$1.21
EA
9 000152 Height Adjustable T Armrest Release Spring Button
$1.21
EA
12 003457 M5 x 14mm Barrel Nut
$1.17
EA
14 003641 .25" x .75" Dowel Pin
$1.17
EA
15 005260 T-Arm Receiver, Ethos
$8.05
EA
16 005261 T-Arm Receiver Liner, Ethos
$11.71
EA
17 005262 T-Arm Clamp, Ethos
$21.11
EA
18a 100500 Arm Pad Full
$26.45
EA
18b 100501 Arm Pad Desk
$26.45
EA
18c 102452 Waterfall Arm Pad Full
$36.71
EA
18d 102521 Waterfall Arm Pad Desk
$36.71
EA
19a 100696 M5 x 30mm PPH Capscrew- Used with Standard Arm Pads
$1.77
EA
19b 100654 M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with Waterfall Arm Pads
$1.77
20 100746 M6 Flat Washer Blk Zn
$1.77
EA
21 100780 M6 x 25 SHCS ZC
$2.36
EA
22 100803 Tube End Plug 7/8"
$1.77
EA
23 103522 M5 x 0.8 x 12 FHCS CLS 10.9 Nyl Blk Zn DIN7991
$1.17
EA
25 005259 Seat Rail Saddle, Offset 1.125"- Use quantity 4 per side for 14" - 15" seat depths, quantity 5 per side for 16" - 18" seat depths and quantity 6 per side for 19" - 20" seat depths. If Seat Option is Omit Seat Sling, Seat Rail Saddles are not used.
$3.15
26 101117 M5 x 22 BTN SHCS BLK ZC- Use quantity 4 per side for 14" - 15" seat depths, quantity 5 per side for 16" - 18" seat depths and quantity 6 per side for 19" - 20" seat depths
$1.77
EA
