Catalyst 5

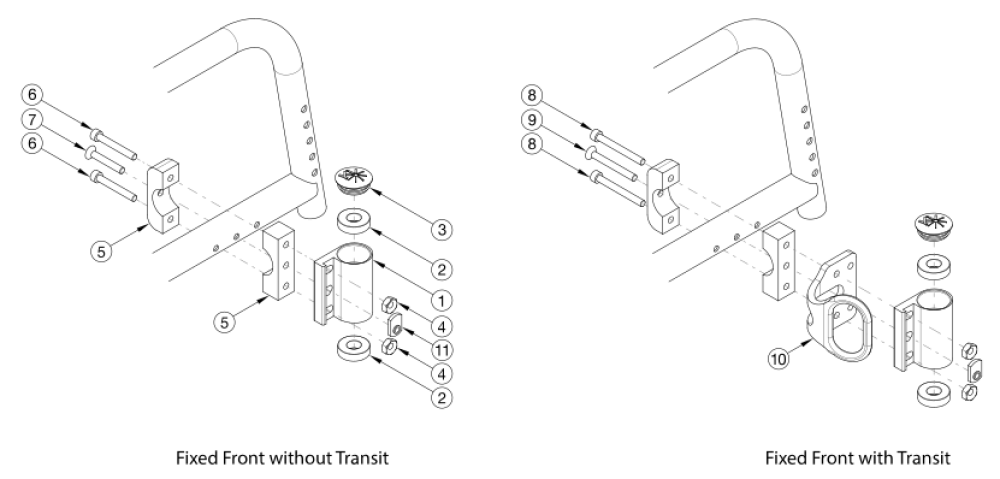

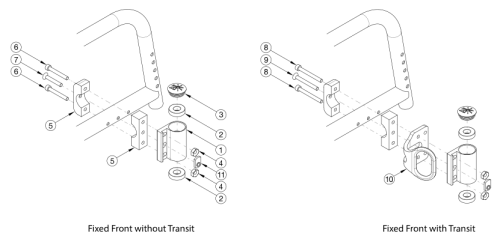

Name: Catalyst 5: Catalyst 5 Standard Caster Housing For Fixed Front Frame
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2 - 7, 11 | 114444 | Caster Housing Assembly, Fixed Front, Black, Left, Catalyst 5 |
$82.13
|
EA |
|
|
| 1b, 2 - 7, 11 | 114444_ _ _ | Color Anodized Caster Housing Assembly, Fixed Front, Left, Catalyst 5 | N/A | EA | Please Call | |
| 1c, 2 - 7, 11 | 114445 | Caster Housing Assembly, Fixed Front, Black, Right, Catalyst 5 |
$82.13
|
EA |
|
|
| 1d, 2 - 7, 11 | 114445_ _ _ | Color Anodized Caster Housing Assembly, Fixed Front, Right, Catalyst 5 | N/A | EA | Please Call | |
| 1a, 1c, 2 - 7, 11 | 114446 | Caster Housing Assembly, Fixed Front, Black, PAIR, Catalyst 5 |
$164.25
|
EA |
|
|
| 1b, 1d, 2 - 7, 11 | 114446_ _ _ | Color Anodized Caster Housing Assembly, Fixed Front, PAIR, Catalyst 5 | N/A | EA | Please Call | |
| 1a, 2 - 5, 8, 9, 11 | 114447 | Caster Housing Assembly, Fixed Front with Transit, Black, Left, Catalyst 5- Front transit bracket shown for reference only. Transit bracket is not included in this assembly. | Front transit bracket shown for reference only. Transit bracket is not included in this assembly. |
$88.00
|
EA |
|
| 1b, 2 - 5, 8, 9, 11 | 114447_ _ _ | Color Anodized Caster Housing Assembly, Fixed Front with Transit, Left, Catalyst 5- Front transit bracket shown for reference only. Transit bracket is not included in this assembly. | Front transit bracket shown for reference only. Transit bracket is not included in this assembly. | N/A | EA | Please Call |
| 1c, 2 - 5, 8, 9, 11 | 114448 | Caster Housing Assembly, Fixed Front with Transit, Black, Right, Catalyst 5- Front transit bracket shown for reference only. Transit bracket is not included in this assembly. | Front transit bracket shown for reference only. Transit bracket is not included in this assembly. |
$88.00
|
EA |
|
| 1d, 2 - 5, 8, 9, 11 | 114448_ _ _ | Color Anodized Caster Housing Assembly, Fixed Front with Transit, Right, Catalyst 5- Front transit bracket shown for reference only. Transit bracket is not included in this assembly. | Front transit bracket shown for reference only. Transit bracket is not included in this assembly. | N/A | EA | Please Call |
| 1a, 1c, 2 - 5, 8, 9, 11 | 114449 | Caster Housing Assembly, Fixed Front with Transit, Black, PAIR, Catalyst 5- Front transit bracket shown for reference only. Transit bracket is not included in this assembly. | Front transit bracket shown for reference only. Transit bracket is not included in this assembly. |
$175.98
|
EA |
|
| 1b, 1d, 2 - 5, 8, 9, 11 | 114449_ _ _ | Color Anodized Caster Housing Assembly, Fixed Front with Transit, PAIR, Catalyst 5- Front transit bracket shown for reference only. Transit bracket is not included in this assembly. | Front transit bracket shown for reference only. Transit bracket is not included in this assembly. | N/A | EA | Please Call |
| 1a, 2 | 001429 | Caster Housing Fixed Front Left, Black, Catalyst |
$42.16
|
EA |
|
|
| 1b, 2 | 001429_ _ _ | Color Anodized Caster Housing Fixed Front, Left, Catalyst |
$104.37
|
EA |
|
|
| 1c, 2 | 001430 | Caster Housing Fixed Front Right, Black, Catalyst |
$42.16
|
EA |
|
|
| 1d, 2 | 001430_ _ _ | Color Anodized Caster Housing Fixed Front, Right, Catalyst |
$104.37
|
EA |
|
|
| 2 | 100530 | Bearing M28 x 1/2" 6001RS |
$13.45
|
EA |
|
|
| 3 | 102005 | Ki Caster Housing Cap |
$1.31
|
EA |
|
|
| 4 | 100745 | Eccentric nut (threaded) |
$1.49
|
|
||
| 5 | 100528 | Caster Housing Clamp |
$26.27
|
EA |
|
|
| 6 | 101472 | M6 x 45 SHCS BLK ZC |
$1.77
|
EA |
|
|
| 7 | 101130 | M6 x 55 FSHCS P/THD BLKZC |
$2.36
|
EA |
|
|
| 8 | 102473 | M6 X 50 CLS12.9 SHCS BLK ZC |
$4.70
|
EA |
|
|
| 9 | 103068 | M6 x 60mm FHCS Blk Zn |
$2.36
|
EA |
|
|
| 11 | 102092 | M6 Weld Nut Offset |
$3.53
|
EA |
|
