Little Wave Arc

Name: Little Wave Arc: Arc Hemi Wheel Lock
Manufacturer: Ki Mobility

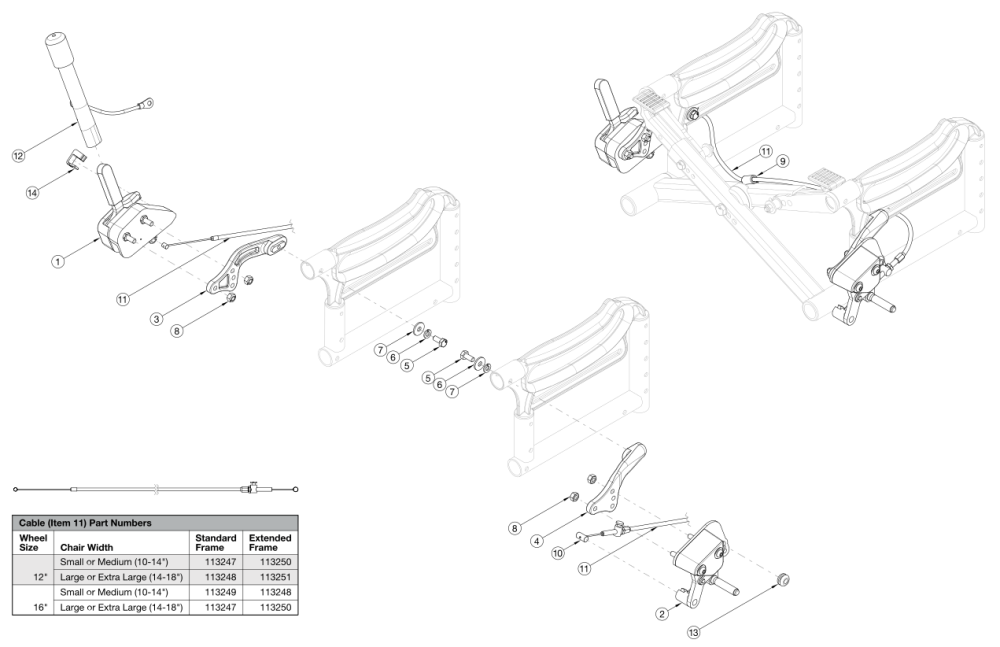

Arc Hemi Wheel Lock parts diagram
(Click on image to enlarge)

For complete retro-fit select the right or left hemi wheel lock assembly, hemi wheel lock mount kit, and the appropriate cable. Please reference the chart in the image above to determine what length cable is needed. Tip: The extended rear frame is used when the Reclining Backrest or Vent/Battery Tray is present. The Arc Wheel Lock Mount is the same across all styles of Wheel Locks and is not needed if changing Wheel Lock styles.
Attachments:
Pos. Part # Description Price UOM Buy
1a, 2a, 8, 9, 12, 13 113244 Hemi Wheel Lock Assembly, Right, Arc
$222.03
EA
1b, 2b, 8, 9, 12, 13 113245 Hemi Wheel Lock Assembly, Left, Arc
$222.03
EA
3 - 7 113246 Hemi Wheel Lock Mount Kit, Arc
$69.38
EA
1a 111593 Hemi Wheel Lock, Master Assembly, Right without Mount
$95.33
EA
1b 111594 Hemi Wheel Lock, Master Assembly, Left without Mount
$95.33
EA
2a 111591 Wheel Lock Follower Assembly without Mount, Left
$78.20
EA
2b 111592 Wheel Lock Follower Assembly without Mount, Right
$78.20
EA
3 110238 Wheel Lock Mount, Right
$32.91
EA
4 110239 Wheel Lock Mount, Left
$32.91
EA
5 102794 M6 x 14, HHCS, Blk Zn
$0.60
EA
6 101835 M6 Lock Washer Blk Zn
$0.60
EA
7 101853 M6 Washer Blk Zn
$0.60
EA
8 101456 M6 Ovl Top L/N ZC
$1.77
EA
9 111597 P-Clip, 1/4", 3/8" Hole
$6.42
EA
10 111598 Drum Brake, Pinch Bolt
$2.64
EA
10, 11a, 14 113247 Hemi Wheel Lock Cable, 3XS, Arc
$19.77
EA
10, 11b, 14 113248 Hemi Wheel Lock Cable, 2XS, Arc
$19.77
EA
10, 11c, 14 113249 Hemi Wheel Lock Cable, 4XS, Arc
$19.77
EA
10, 11d, 14 113250 Hemi Wheel Lock Cable, XS, Arc
$19.77
EA
10, 11e, 14 113251 Hemi Wheel Lock Cable, S, Arc
$17.04
EA
12 200369 Wheel Lock Extension
$39.98
EA
13 115743 Wheel Lock Retaining Grommet
$1.79
EA
14 115879 Hemi Wheel Lock Cable Retaining Clip with Instruction
$16.24
EA
