Little Wave Flip
Name: Little Wave Flip: Flip Rear Anti-tip
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

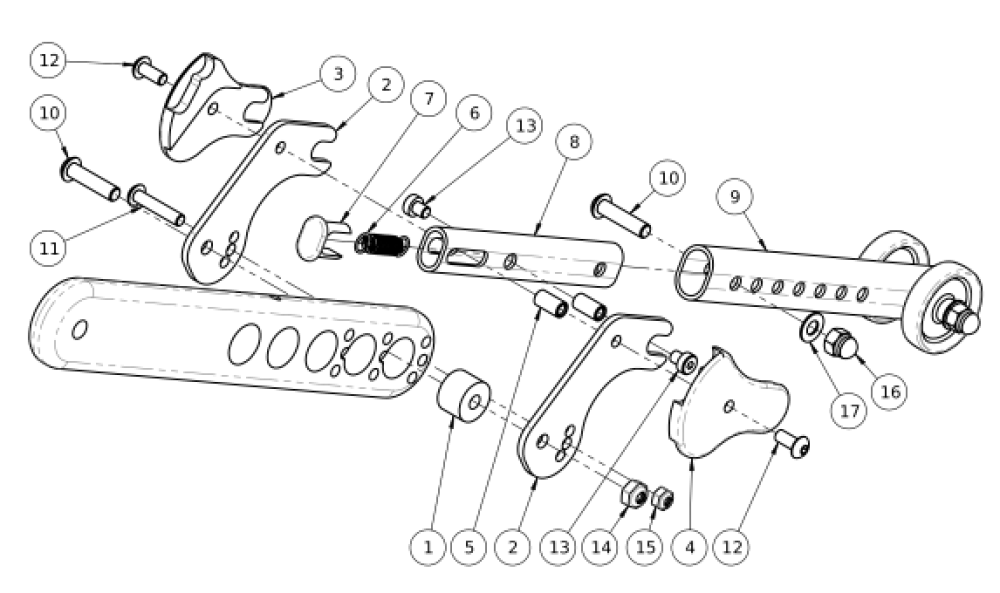

Part Picture
(Click on image to enlarge)
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 7, 8a, 9a, 10 - 17 | 505580 | Anti-Tip Kit, 12" FLIP EACH |
$85.64
|
EA |
|
|
| 1 - 7, 8a, 9a, 10 - 17 | 502886 | Anti-Tip Kit, 12" FLIP PAIR |
$171.26
|
EA |
|
|
| 1 - 7, 8a, 9b, 10 - 17 | 505581 | Anti-Tip Kit, 16" FLIP EACH |
$85.64
|
EA |
|
|
| 1 - 7, 8a, 9b, 10 - 17 | 502887 | Anti-Tip Kit, 16" FLIP PAIR |
$171.26
|
EA |
|
|
| 1 - 7, 8b, 9b, 10 - 17 | 505582 | Anti-Tip Kit, 20-24" FLIP EACH |
$85.64
|
EA |
|
|
| 1 - 7, 8b, 9b, 10 - 17 | 502888 | Anti-Tip Kit, 20-24" FLIP PAIR |
$171.26
|
EA |
|
|
| 1 | 001906 | Bushing, Anti-tip |
$7.86
|
EA |
|
|
| 2 | 001907 | Anti-Tip Bracket |
$12.85
|
|
||
| 3 | 001908 | Cover, Anti-Tip, R |
$1.64
|
EA |
|
|
| 4 | 001909 | Cover, Anti-Tip, L |
$1.64
|
EA |
|
|
| 5 | 001910 | Spring Anchor, Index, Anti-Tip |
$12.45
|
|
||
| 6 | 001911 | Spring, Ext, .31OD x 1.16LG x .038W |
$16.33
|
EA |
|
|
| 7 | 001912 | Cap, Tube, Anti-Tip |
$2.44
|
EA |
|
|
| 8a | 001913 | Tube, Anti-Tip, Short- Commonly used with 12" or 16" rear wheels | Commonly used with 12" or 16" rear wheels |
$12.23
|
EA |
|
| 8b | 001914 | Tube, Anti-Tip, Long- Commonly used with 20" - 24" rear wheels | Commonly used with 20" - 24" rear wheels |
$14.27
|
EA |
|
| 9a | 001917 | Extension Assembly, Anti-Tip, Short- Commonly used with 12" rear wheels | Commonly used with 12" rear wheels |
$17.33
|
EA |
|
| 9b | 001918 | Extension Assembly, Anti-Tip, Long- Commonly used with 16" - 24" rear wheels | Commonly used with 16" - 24" rear wheels |
$22.43
|
EA |
|
| 10 | 101593 | M6 x 25 BTN SHCS BLKZC |
$1.77
|
EA |
|
|
| 11 | 102616 | M5 X 25 BHCS BLK ZC |
$1.17
|
EA |
|
|
| 12 | 102799 | M5 x 12, BHCS, BZ w/Patch |
$1.17
|
|
||
| 13 | 102796 | M5 x 6, Low SHCS, Blk Zn |
$4.70
|
|
||
| 14 | 100658 | M6 Nylock Nut Blk Zn |
$1.17
|
EA |
|
|
| 15 | 100657 | M5 Nylock Nut Blk Zn |
$0.60
|
EA |
|
|
| 16 | 100558 | M6 NYL INS Domed Cap L/N ZC |
$1.17
|
EA |
|
|
| 17 | 102803 | Washer Flat .250 x .500 x .027 HX BLZ |
$1.77
|
EA |
|
