9. Sof Captains Seat

Name: 9. SOF Captains Seat: Angle Adjustable Seat Towers, Captain's Seating W/ Lift, Tb3 Reac
Manufacturer: Pride Mobility

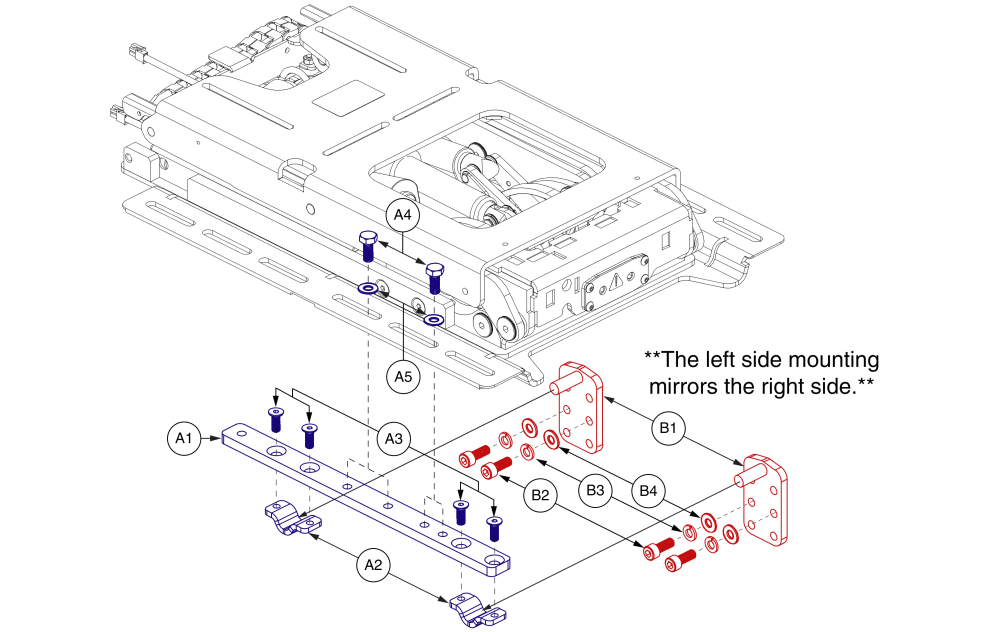

Angle Adjustable Seat Towers, Captain's Seating W/ Lift, Tb3 Reac parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
A1 - A5 HDW1801739 HARDWARE, ASSY, ANGLE ADJUSTABLE, ILEVEL CAPTAINS SEAT
$56.40
EA
A1 MEC145322 INTERFACE SLIP PLATE, ISO
$22.90
EA
A2 MEC131180 SEATING INTERFACE CLAMP, TRU-BALANCE 3
$3.90
EA
A3 SCRSHFH1203 SCREW, FLAT HEAD, M8X1.25 X 20, ISO 10642, CL 10.9, BZ, PVTP
$3.20
EA
A4 HDW120048 SCREW, HEX HEAD, M10X1.5 X 20, ISO 4017, CL 10.9, BLK, PVTP
$3.20
EA
A5 WASMETR1031 WASHER, FLAT, 10.5 ID X 20 OD X 2 THK, ISO 7089-10-200HV, BZ
$3.20
EA
B1 - B4 MEC133591 SEAT MOUNT CONNECTOR, ASSY, TB3 TILT, METRIC
$42.50
EA
B1 MEC131182 MOUNTING BRACKET, SEAT INTERFACE, TRU-BALANCE 3
$26.00
EA
B2 SCR8110003 SCREW, SOCKET HEAD, M10X1.5 X 25, ISO 4762, CL 12.9, BZ, PVTP
$3.20
EA
B3 WASLOCK1094 WASHER, LOCK, 10.7 ID X 18.1 OD X 2.0 THK, DIN 127B, BZ
$3.20
EA
B4 WASMETR1031 WASHER, FLAT, 10.5 ID X 20 OD X 2 THK, ISO 7089-10-200HV, BZ
$3.20
EA
