GoGo Endurance - S54LXLIT - SK8
- 1. Battery Box
- 2. Charger Assy
- 3. Console Electronics Assy's
- 4. Controller Electronics Assy's
- 5. Decal Packages
- 6. Drive Motor Assy
- 7. Frame Assy's
- 8. Front Basket
- 9. Owner's Package
- 10. Seat Assy's
- 11. Shroud Assy's
- 12. Wheel Assy's
Gogo Endurance - S54lxlit - Sk8

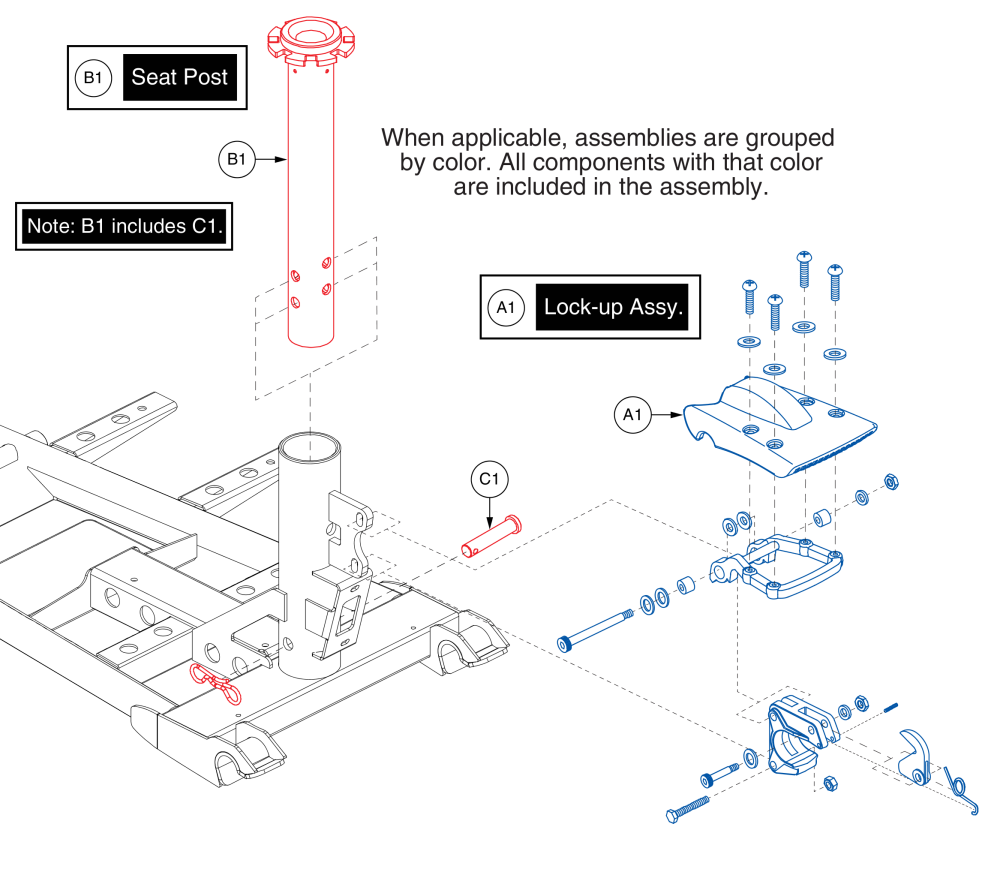

Name: GoGo Endurance - S54LXLIT - SK8: Seat Post & Lock-up Assy
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 | FRMASMB9231 | FRAME, ASSY, LOCKUP, SC40E/44E |
$55.90
|
EA |
|
|
| B1 | SET2102180 | SEAT POST, ASSY, GO GO ENDURANCE, W/HAIRPIN COTTER |
$46.30
|
EA |
|
|
| C1 | MEC2101485 | PIN, CLEVIS, HAIRPIN COTTER, .375 OD X 2.25 LG, 2.00 USABLE LG, 1004 TO 1045 CARBON STL, 80 HRB MIN, ZN |
$7.90
|
EA |
|
