J6 / J6va - Jb2

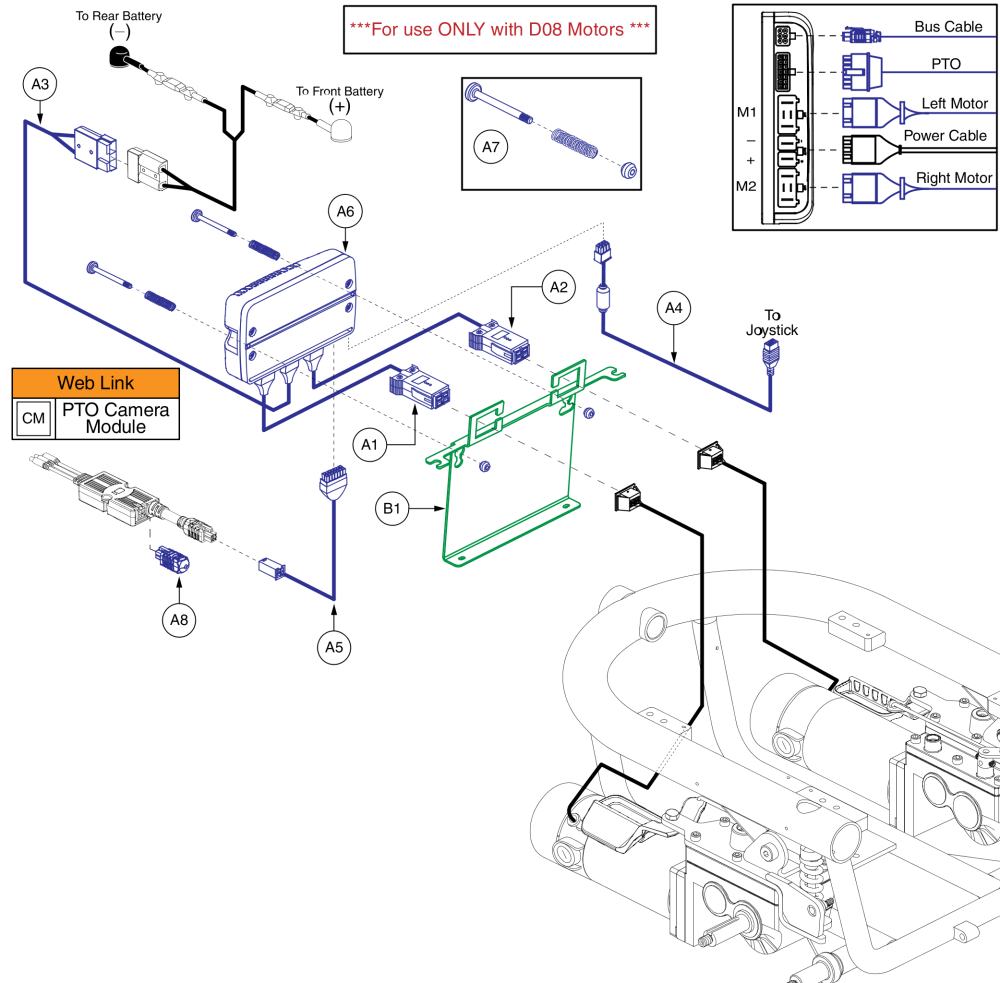

Name: J6 / J6VA - JB2: Ne Electronics, Static Seat, Pto Qbc, Quantum, J6
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 - A8 | ELE2103280 | ELECTRONIC, ASSY, NE, D08 MOTORS, J6, INTERMEDIATE & RUN PLUG | N/A | EA | Please Call | |
| A1 | DWR1056H029 | ELECTRONIC, HARNESS, MOTOR CONTROLLER, QLOGIC, CURTIS, JAZZY600/QUANTUM600, RIGHT, H-1056-029 |
$70.50
|
EA |
|
|
| A2 | DWR1056H028 | ELECTRONIC, HARNESS, MOTOR CONTROLLER, QLOGIC, CURTIS, JAZZY600/QUANTUM600, LEFT, H-1056-028 |
$70.50
|
EA |
|
|
| A3 | DWR1056H027 | ELECTRONIC, HARNESS, POWER CABLE, QLOGIC, CURTIS, JAZZY600/QUANTUM600, H-1056-027 |
$68.40
|
EA |
|
|
| A4 | DWR1111H065 | ELECTRONIC, HARNESS, BUS EXTENSION CABLE, CURTIS, 0.410 METER, MALE/FEMALE, H-1111-065, (CURTIS: 17881303) |
$384.30
|
EA |
|
|
| A5 | ELE1907905 | HARNESS, PTO INTERFACE, NE TO 4 PIN MOLEX |
$25.10
|
EA |
|
|
| A6 | ELEASMB6836 | CONTROLLER, NE, CURTIS, ASSY, 75 AMP, W/JAZZY610 PROGRAM |
$574.70
|
EA |
|
|
| A7 | HDWASMB1059 | QUICK RELEASE BUTTON, ASSY, FLIGHT POWER MODULE, B-1116-054 |
$19.80
|
EA |
|
|
| A8 | DGN1901203 | OVER-MOLD RUN RECEPTACLE, 4-CIRCUIT |
$6.40
|
EA |
|
|
| B1 | DWR1054D054 | POWER MODULE MOUNTING BRACKET, D-1054-054 |
$25.30
|
EA |
|
|
| CM |
$308.00
|
EA |
|
