loadingLoading... Mega Motion Power Lift Recliners

Mega Motion Power Lift Recliners

Name: Mega Motion Power Lift Recliners: Nm3001, Infinite Motor, Lift Chair
Manufacturer: Pride Mobility

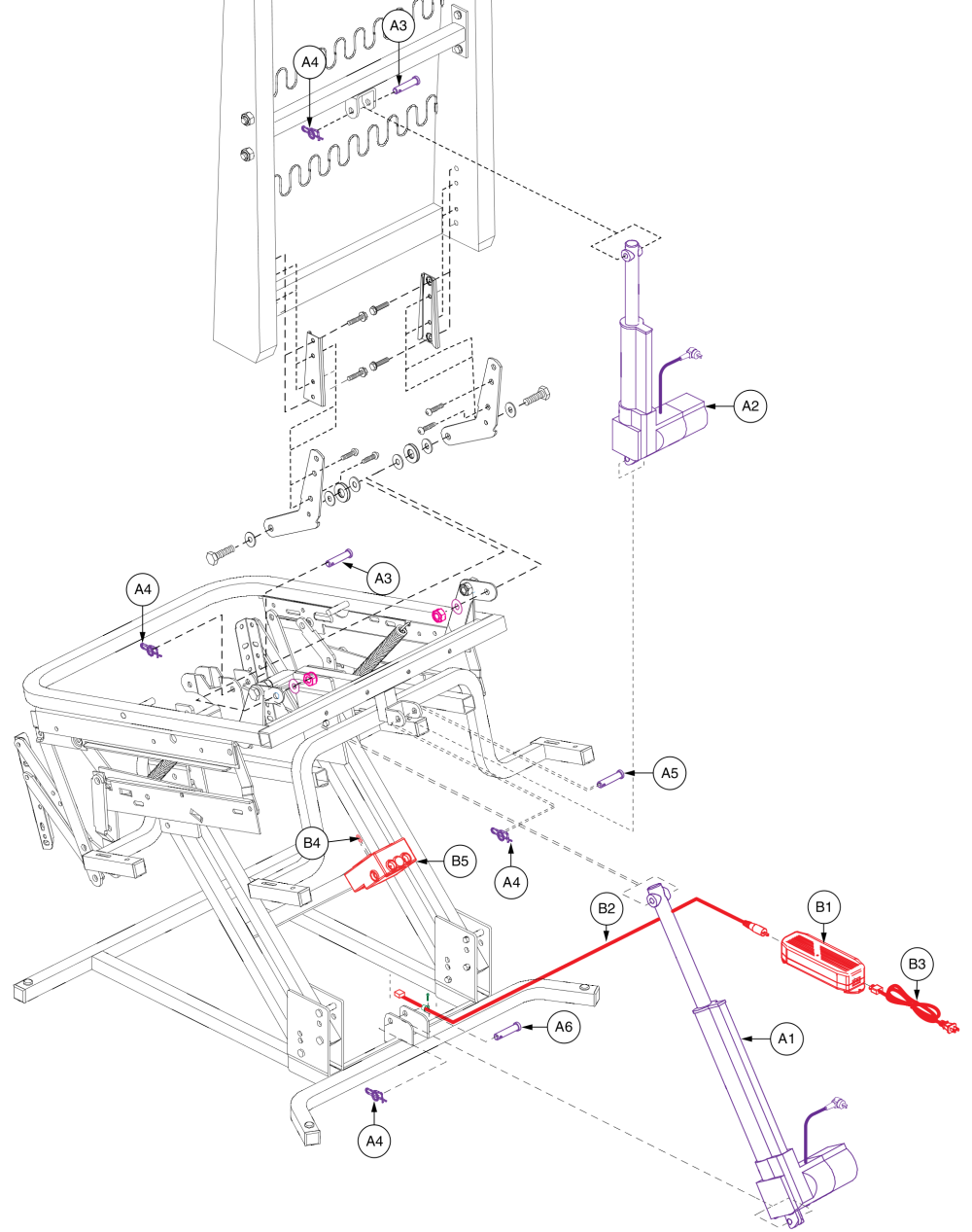

Nm3001, Infinite Motor, Lift Chair parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
A1 DRVMOTR1361 MOTOR, SLAVE MOTOR, LIFT CHAIR, BASE, (FV: LMD6205G)
$395.60
EA
A2 DRVMOTR1362 MOTOR, SLAVE MOTOR, LIFT CHAIR, BACK, (FV: LMD6205H)
$395.60
EA
A3 HDW163337 CLEVIS PIN, ZINC PLATED, 9.5MM OD X 48MM L N/A EA Please Call
A4 PINSOTR1018 PIN, COTTER, 0.37" SHAFT X 1.25" OVERALL LENGTH X 0.072" WIRE, RUE CLIP, SELF LOCKING
$3.20
EA
A5 HDW163339 CLEVIS PIN, ZINC PLATED, 9.5MM OD X 52MM L N/A EA Please Call
A6 HDW163342 CLEVIS PIN, ZINC PLATED, 9.5MM OD X 59MM L N/A EA Please Call
B1 CTL161464 ELECTRONIC, TRANSFORMER, CLASS VI, ENERGY EFFICIENT, LIMOSS
$64.00
EA
B2 ELE162120 ELECTRONIC, TRANSFORMER/MOTOR CONNECTION CABLE, ENERGY EFFICIENT, LIMOSS
$7.40
EA
B3 ELE161465 ELECTRONIC, HARNESS, A/C POWER CORD, LIFT CHAIR, ENERGY EFFICIENT TRANSFORMER, LIMOSS, USA PLUG
$5.70
EA
B4 SCRPPTC1021 SCREW, PAN HEAD, TYPE I CROSS RECESSED, THREAD CUTTING TYPE F, 8 (.164)-32 X .5, ASME B18.6.3, BZ
$3.20
EA
B5 ELEASMB6237 ELEASMB6237 ELECTRONIC, MOTOR CONTROL BOX, UNIVERSAL, INFINITE MOTOR, (FV: CM105)
$125.30
EA
