Pursuit - S713 - Se7

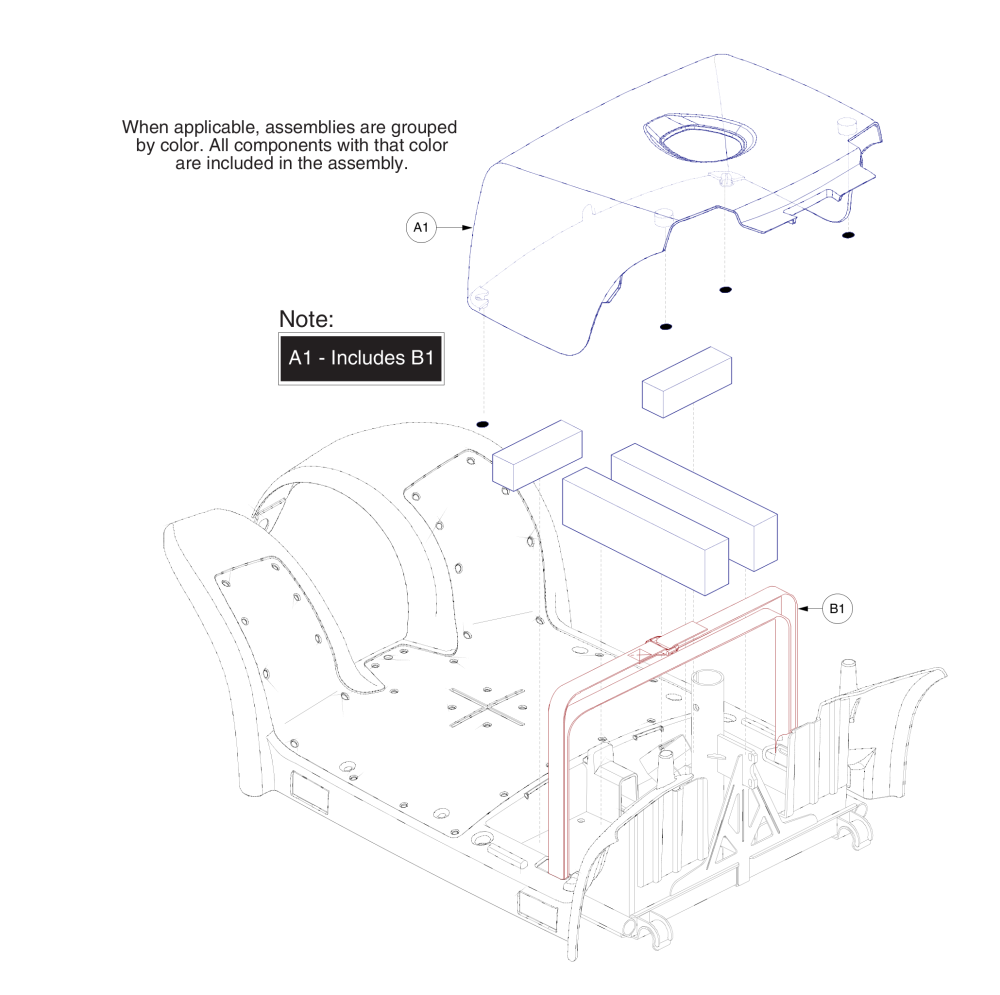

Name: Pursuit - S713 - SE7: Battery Shroud Cover Assy.
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 | SHDASMB5802 | SHROUD, ASSY, BATTERY BOX, BLACK, SC713 |
$95.40
|
EA |
|
|
| B1 |
$308.00
|
EA |
|
