loadingLoading... Q6 Edge TB3 Lift, Captains Seat

Q6 Edge Tb3 Lift, Captains Seat

Name: Q6 Edge TB3 Lift, Captains Seat: Tb3 Lift Only Seat Interface
Manufacturer: Pride Mobility

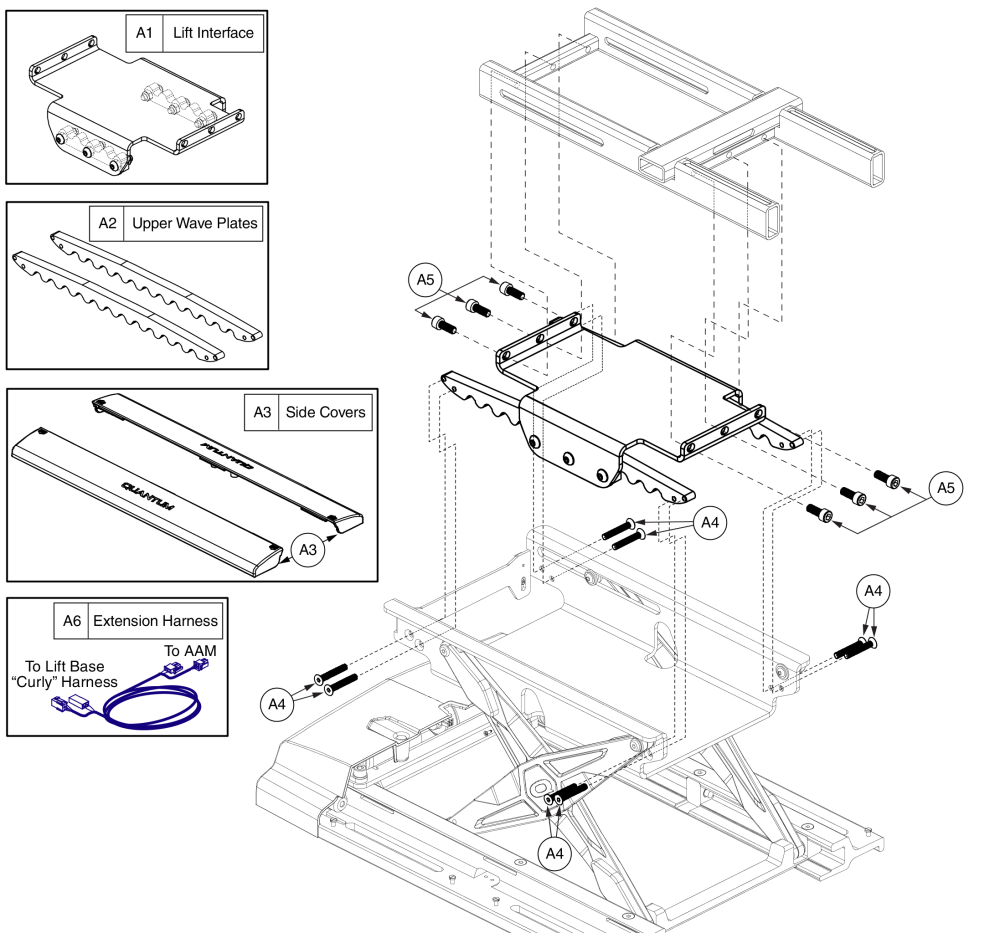

Tb3 Lift Only Seat Interface parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
A1 - A6 SET130988 SEAT PLATE, ASSY, LIFT ONLY, TRU-BALANCE 3
$365.60
EA
A1 MEC151584 LIFT ONLY INTERFACE ASSY, TRU BALANCE 3
$192.00
EA
A2 MEC151579 LIFT TO TILT INTERFACE WAVE PLATE UPPER
$70.00
EA
A3 DGN121687 COVER, SIDE RAIL, PLASTIC, TRU-BALANCE 3 LIFT
$10.90
EA
A4 SCRSHFH1023 SCREW, SHFH, M6-1.0 X 30MM
$3.20
EA
A5 HDW125250 SCREW, SOCKET HEAD, M8X1.25 X 20, ISO 4762, CL 12.9, BZ, PVTP
$3.20
EA
A6 ELE133304 ELECTRONIC, HARNESS, CURLY CABLE EXTENSION CABLE, FRONT MOUNTED, TRU-BALANCE 3 LIFT
$25.60
EA
