Tru Balance® 3 Seating & Electronics

Name: TRU Balance® 3 Seating & Electronics: Fixed Tower Interfaces, Tb3
Manufacturer: Pride Mobility

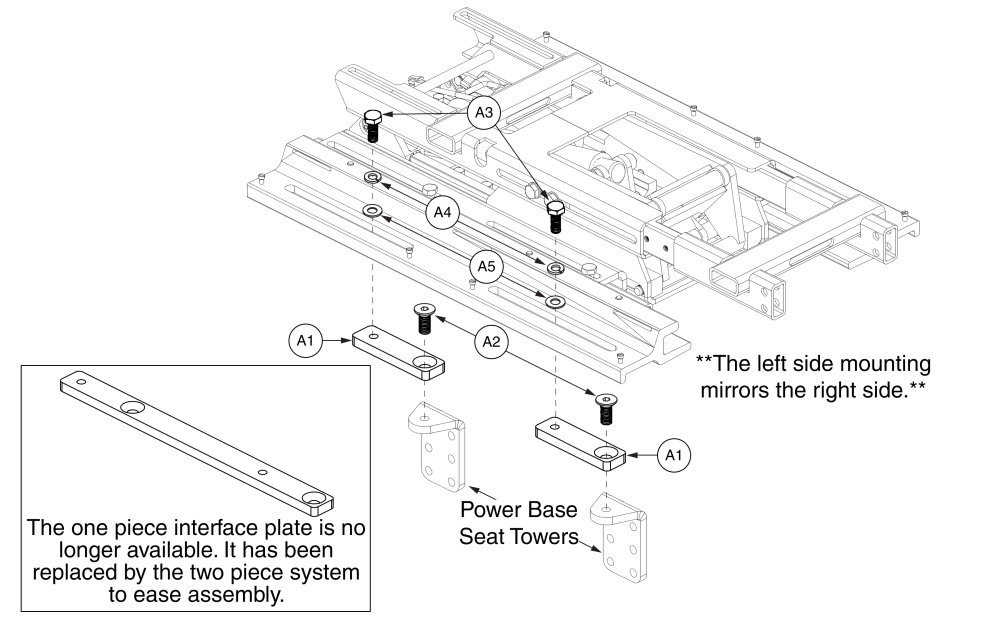

Fixed Tower Interfaces, Tb3 parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
A1 - A5 HDW131889 HARDWARE, ASSY, FIXED, TRU-BALANCE 3
$76.60
EA
A1 MEC123948 INTERFACE PLATE
$51.90
EA
A2 HDW136557 SCREW, SHFH, M10-1.5 X 16MM, CLASS 10.9, BLACK ZINC, PATCH
$3.20
EA
A3 SCRHHCS1402 SCREW, HEX HEAD, M10X1.5 X 25, ISO 4017, CL 10.9, BZ
$3.20
EA
A4 WASLOCK1094 WASHER, LOCK, 10.7 ID X 18.1 OD X 2.0 THK, DIN 127B, BZ
$3.20
EA
A5 WASMETR1031 WASHER, FLAT, 10.5 ID X 20 OD X 2 THK, ISO 7089-10-200HV, BZ
$3.20
EA
