Name: TRU Balance® 3 Seating & Electronics: Static Back Assy, Flip Forward, Tb3
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility

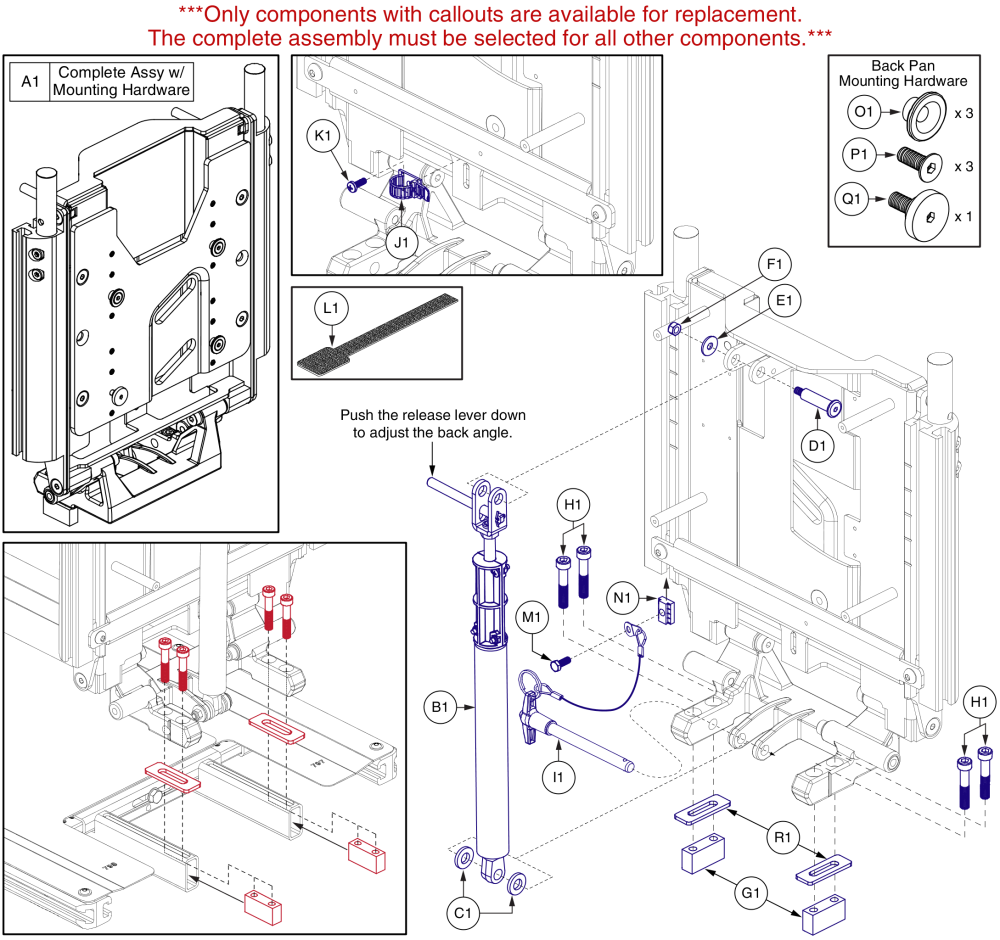

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 | MEC131957 | STATIC BACK, ASSY, FLIP FORWARD, TRU-BALANCE 3 |
$1,560.50
|
EA |
|
|
| B1 | MEC125176 | LOCKABLE GAS SPRING, ASSY, STATIC BACK, TRU-BALANCE 3 |
$118.20
|
EA |
|
|
| C1 | MEC122963 | LIMIT STOP CUSHION, 20MM OD X 10MM ID X 3MM THK |
$3.20
|
EA |
|
|
| D1 | MEC131121 | BOLT, PIVOT ROD, TRU-BALANCE 3 RECLINE |
$13.40
|
EA |
|
|
| E1 | WASMETR1083 | WASHER, FLAT, 6.4 ID X 18 OD X 1.6 THK, ISO 7093-1-6-200HV, BZ |
$3.20
|
EA |
|
|
| F1 | NUTNYLK1019 | NUT, LOCK, PVTP, M6X1.0, ISO 10511, CL 05, BZ |
$3.20
|
EA |
|
|
| G1 | MEC121721 | BACK TO BASE SLOT BLOCK, TRU BALANCE 3 |
$13.80
|
EA |
|
|
| H1 | SCR8110007 | SCREW, SOCKET HEAD, M8X1.25 X 40, ISO 4762, CL 12.9, BZ, PVTP |
$3.20
|
EA |
|
|
| I1 | HDW131958 | PIN, KWIK-LOK, T-HANDLE, M10 X 90, W/152MM BLACK LANYARD |
$255.20
|
EA |
|
|
| J1 | HDW135288 | WIRE CLAMP, LADDER STYLE, ADJUSTABLE, BLACK, PLASTIC |
$4.00
|
EA |
|
|
| K1 | SCRPPTC1021 | SCREW, PAN HEAD, TYPE I CROSS RECESSED, THREAD CUTTING TYPE F, 8 (.164)-32 X .5, ASME B18.6.3, BZ |
$3.20
|
EA |
|
|
| L1 | VELDBLS1001 | REUSABLE FASTENER, 1/2"W X 8"L, HOOK & LOOP |
$3.20
|
EA |
|
|
| M1 | SCRHHCS1412 | SCREW, HEX HEAD, M8X1.25 X 16, ISO 4014, CL 10.9, BZ, PVTP |
$3.20
|
EA |
|
|
| N1 | NUT8120005 | NUT, T-SLOT, BLACK, M8-1.25 |
$5.80
|
EA |
|
|
| O1 | FRM8120061 | BUTTON, SEAT BACK PAN, TRU-BALANCE 3 RECLINE |
$6.20
|
EA |
|
|
| P1 | SCR8120019 | SCREW, FLAT HEAD, M6X1.0 X 16, ISO 10642, CL 10.9, BZ, PVTP |
$3.20
|
EA |
|
|
| Q1 | SCR8120015 | SCREW, THUMB, BLACK, CUSTOM, M6-1.0 |
$12.40
|
EA |
|
|
| R1 | MEC140345 | TILT TO BACK SPACER PLATE |
$12.80
|
EA |
|
