Va Victory 9 - Sc609v - Sd6
Name: VA Victory 9 - SC609V - SD6: Front Basket Assy, Va Victory 10, Acc134444
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility

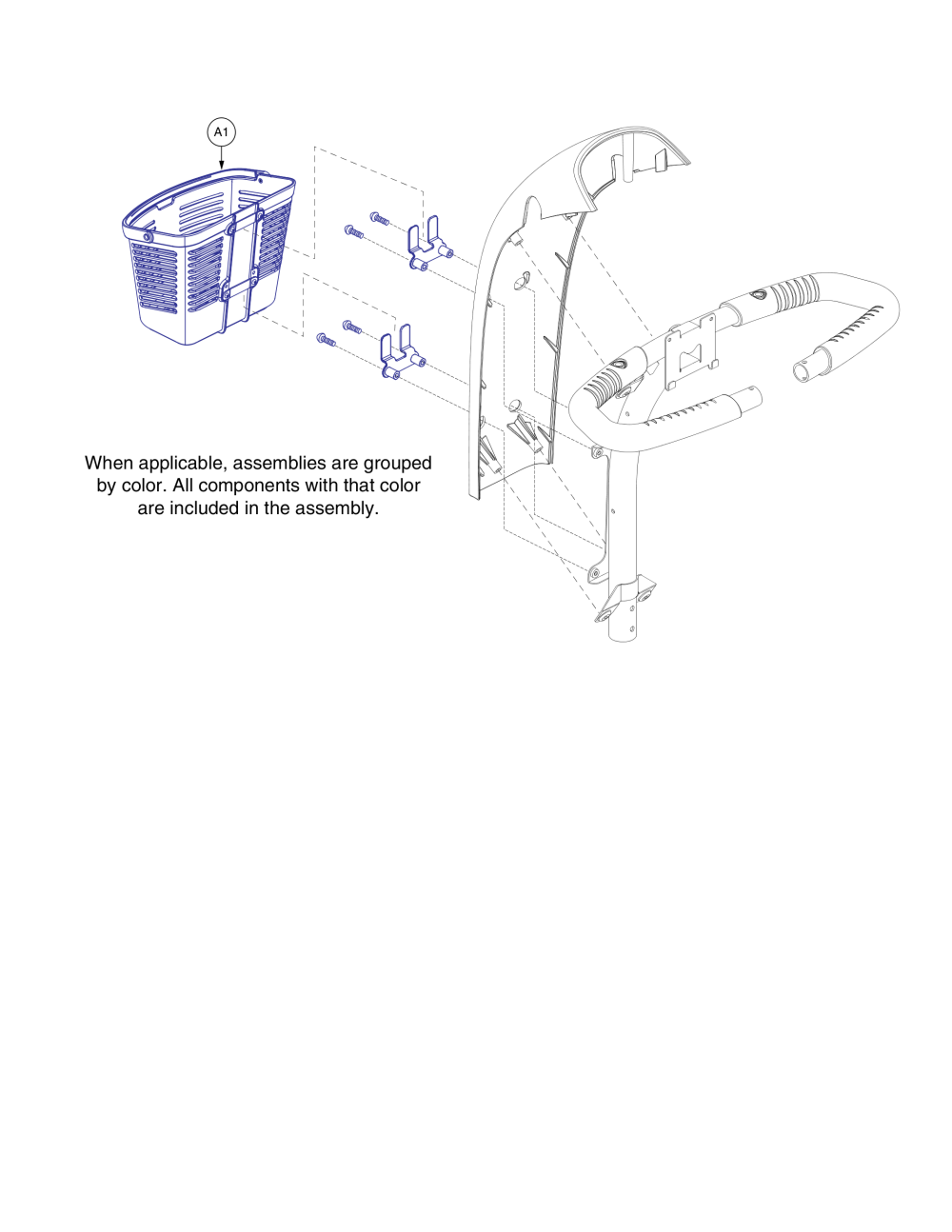

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 | ACC134444 | BASKET, ASSY, FRONT, MAXIMA |
$79.30
|
EA |
|
