Quickie S636/s646 (after S/n Prefix S64a & S63a-143733)

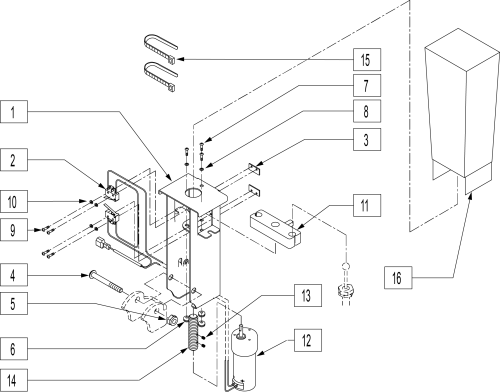

Name: Quickie S636/S646 (After S/N Prefix S64a & S63a-143733): Anti-tip Lock-out Mech S636 & S646
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical
Part Picture
(Click on image to enlarge)
Note: lock-out mechanism used with power recline only.
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 2 | 120263 | HARNESS ANTI-TIP LOCKOUT MOTOR | N/A | EA | Please Call | |
| 4 | 226217 | 5/16-18 x 2" BH C/S BLK |
$7.00
|
EA |
|
|
| 5 | 202116 | 5/16-18 NYLOCK NUT THIN BLK | N/A | EA | Please Call | |
| 7 | 281036 | 4-40 x 3/8 PAN PHIL M/S BLK |
$7.00
|
EA |
|
|
| 8 | 200306 | WASHER FLAT #4 .312 OD x .125 ID | N/A | EA | Please Call | |
| 10 | 261536 | #2 x 1/4 FLAT WASHER |
$6.00
|
EA |
|
|
| 13 | 225082 | 6-32 x 3/16 SET SCR BLK |
$3.00
|
EA |
|
|
| 1 - 16 | 120262 | MOTOR ASSY S6X6 |
$1,328.00
|
EA |
|
