Catalyst E And 4e

Name: Catalyst E and 4E: Catalyst E Handrims - Aluminum Anodized
Manufacturer: Ki Mobility

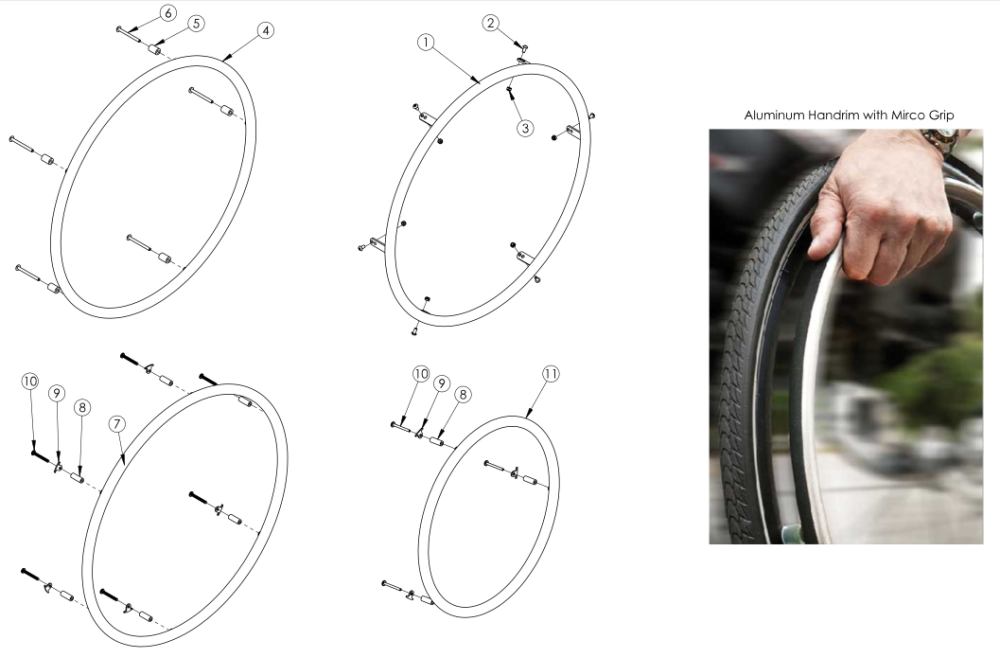

Catalyst E Handrims - Aluminum Anodized parts diagram
(Click on image to enlarge)

Handrim Hardware ChartFor more information see Handrim Hardware Chart. Quantity in Handrim Hardware Kits are for one wheel. Tab mounted handrims must be installed prior to the tire being installed. If the Spoke wheel (effective 2/27/2023) is present with a Pneumatic w/ Airless Insert tire, the 6 rivet nut handrim and hardware should be used. If the Spoke wheel is present and does NOT have a Pneumatic w/ Airless Insert tire, the 5 rivet nut handrim and hardware should be used.
Pos. Part # Description Price UOM Buy
8a, 9a, 10a 502168 Handrim Hardware Kit, 6 Rivet Nut, EACH- Used with MAXX Spoke wheels with standard handrim mount option. Used with Spoke wheel with standard handrim mount option when Pneumatic w/ Airless Insert tires ARE present.
$41.16
EA
8b, 9a, 10b 113069 Handrim Hardware Kit, Close Mount, 6 Rivet Nut, EACH- Used with MAXX Spoke wheels with close handrim mount option. Used with Spoke wheel with close handrim mount option when Pneumatic w/ Airless Insert tires ARE present.
$57.69
EA
5a, 6c 117377 Handrim Hardware Kit, Standard Mount, MAXX Mag, EACH- Used with MAXX Mag wheels with standard handrim mount option
$34.80
EA
5b, 10a 117378 Handrim Hardware Kit, Close Mount, MAXX Mag, EACH- Used with MAXX Mag wheels with close mount handrim mount option
$40.36
EA
7a 200536 Handrim Aluminum Anodized 6 Rivet Nut 20"- Used with 20" MAXX Spoke and 20" MAXX Mag wheels
$90.56
EA
7a 502246 Handrim Aluminum Anodized 6 Rivet Nut 20" w/ Micro Grip- Used with 20" MAXX Spoke and 20" MAXX Mag wheels
$141.90
EA
7b 100560 Handrim Aluminum Anodized 6 Rivet Nut 22"- Used with 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag wheels
$82.32
EA
7b 502247 Handrim Aluminum Anodized 6 Rivet Nut 22" w/ Micro Grip- Used with 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag wheels
$119.77
EA
7c 105137 Handrim Aluminum Anodized 6 Rivet Nut 24"- Used with 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag wheels
$80.20
EA
7c 117104 Handrim Aluminum Anodized 6 Rivet Nut 24" w/ Micro Grip- Used with 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag wheels
$124.75
EA
7d 200350 Handrim Hard Anodized 6 Rivet Nut 25"- Used with 25" MAXX Spoke wheels
$88.20
EA
7d 502249 Handrim Aluminum Hard Anodized 6 Rivet Nut 25" w/ Micro Grip- Used with 25" MAXX Spoke wheels
$119.77
EA
7e 200351 Handrim Hard Anodized 6 Rivet Nut 26"- Used with 26" MAXX Spoke wheels
$88.20
EA
7e 502250 Handrim Aluminum Hard Anodized 6 Rivet Nut 26" w/ Micro Grip- Used with 26" MAXX Spoke wheels
$132.76
EA
5a, 6a 502171 Handrim Hardware Kit, 5 Rivet Nut, EACH- Used with X Core Mag wheels with standard handrim mount option
$35.28
EA
5b, 6b 113070 Handrim Hardware Kit, Close Mount, 5 Rivet Nut, EACH- Used with X Core Mag wheels with close mount handrim mount option
$28.82
EA
8a, 9b, 10a 118971 Handrim Hardware Kit, 5 Rivet Nut, Spoke Wheel, EACH- Used with Spoke wheel with standard handrim mount option when Pneumatic w/ Airless Insert tires are NOT present
$36.94
EA
8b, 9b, 10b 118970 Handrim Hardware Kit, Close Mount, 5 Rivet Nut, Spoke Wheel, EACH- Used with Spoke wheel with close handrim mount option when Pneumatic w/ Airless Insert tires are NOT present
$40.09
EA
4a 101897 Handrim Aluminum Anodized 5 Rivet Nut 20"- Used with 20" 5-Spoke X Core Mag wheels
$76.43
EA
4a 502242 Handrim Aluminum Anodized 5 Rivet Nut 20" w/ Micro Grip- Used with 20" 5-Spoke X Core Mag wheels
$120.81
EA
4b 101898 Handrim Aluminum Anodized 5 Rivet Nut 22"- Used with 22" 5-Spoke X Core Mag and 22" Spoke wheels
$76.43
EA
4b 502243 Handrim Aluminum Anodized 5 Rivet Nut 22" w/ Micro Grip- Used with 22" 5-Spoke X Core Mag and 22" Spoke wheels
$120.81
EA
4c 100975 Handrim Aluminum Anodized 5 Rivet Nut 24"- Used with 24" 5-Spoke X Core Mag and 24" Spoke wheels N/A EA Please Call
2 502170 Handrim Hardware Kit, Superlight, EACH- Used with Superlight Spoke
$17.65
EA
1a 100754 Handrim Aluminum Anodized 6 Tab 24"- Used with 24" Superlight Spoke
$94.08
EA
1a 502236 Handrim Aluminum Anodized 6 Tab 24" w/ Micro Grip- Used with 24" Superlight Spoke
$132.76
EA
1b 101160 Handrim Superlight Aluminum Anodized 25", 6 Tab- Used with 25" Superlight Spoke
$104.67
EA
1b 502237 Handrim Aluminum Anodized 6 Tab 25" w/ Micro Grip- Used with 25" Superlight Spoke
$119.77
EA
2 100536 M5 x 12 BTN SHCS ZC- Used with Superlight Spoke
$2.36
3 100657 M5 Nylock Nut Blk Zn- Used with Spinergy
$0.60
EA
5a 100629 Handrim Spacer Alum Ano Riv- Used with X Core Mag (Qty 5 needed) and MAXX Mag (Qty 6 needed) wheels
$1.23
EA
6a 100724 M5 x 55 PH TRS HD M/S ZC- Used with X Core Mag
$1.17
6c 103545 M5 x 50 DIN7985 PH PAN HD M/S BLK ZC- Used with MAXX Mag with standard handrim mount option
$4.56
8 100653 Handrim Spacer Spoke- Used with MAXX Spoke wheels
$1.17
9a 100698 Handrim Tab- Used with Ki Spoke and MAXX Spoke wheels. Used with Spoke wheel when Pneumatic w/ Airless Insert tires ARE present. Tabs are included / installed with MAXX Spoke wheels.
$4.45
9b 116732 Wheel Tabs, Long, 5 Rivet Nut- Used with Spoke wheel when Pneumatic w/ Airless Insert tires are NOT present
$4.45
10a 100654 M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with MAXX Spoke wheels
$1.77
